PHOTOREALISTIC SPATIAL CAPTURE • NATIVE 3DGS

XGRIDS PORTALCAM

Name: PortalCam
Brand: Rapid Scan 3D
Price: 4999.0 USD
Availability: InStock

An ultra-portable spatial camera combining LiDAR, four cameras and automated 3D Gaussian Splatting to transform real environments into immersive, photorealistic digital spaces.

REQUEST A QUOTE VIEW SPECIFICATIONS

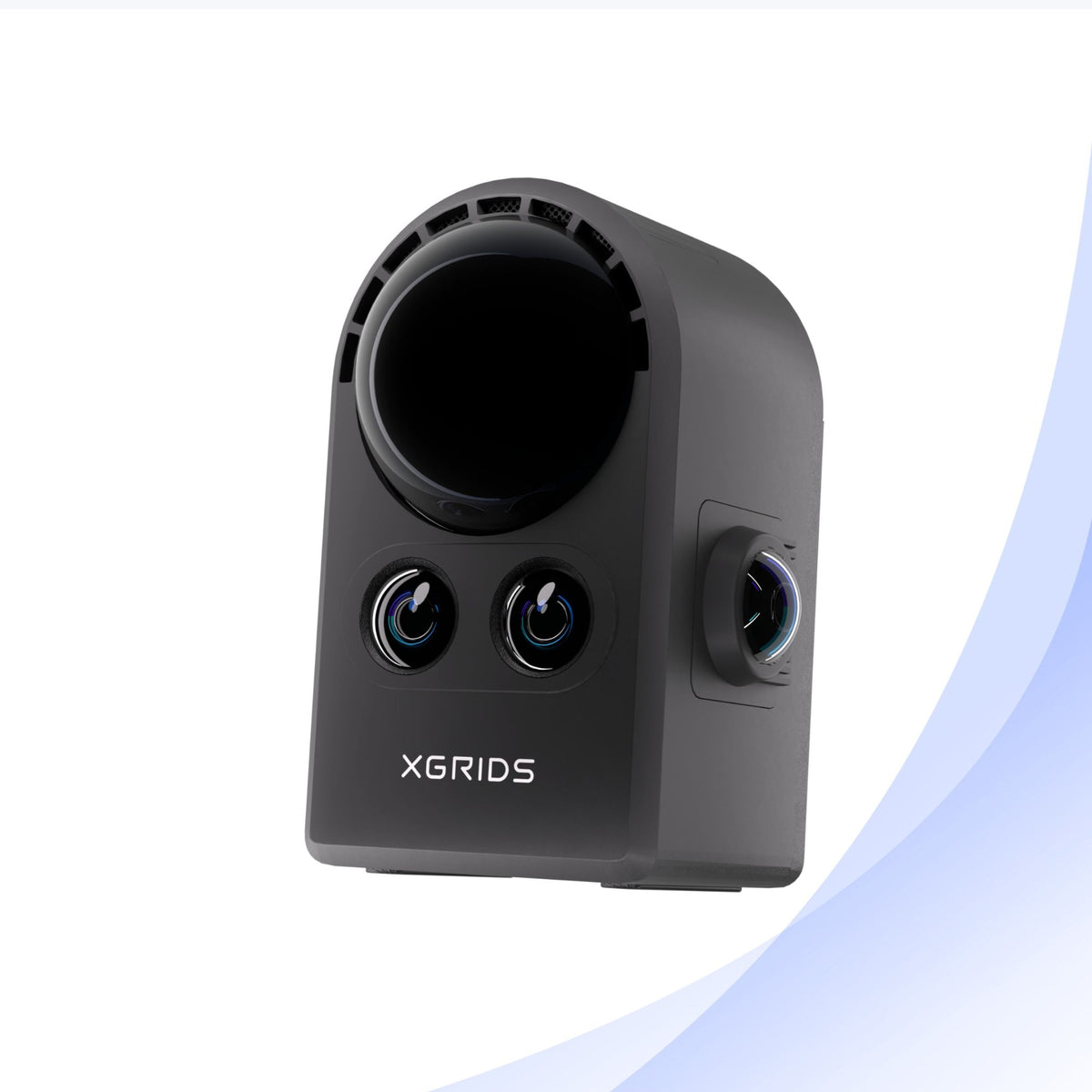

XGRIDS PortalCam handheld spatial camera

Capture Reality Itself

The XGRIDS PortalCam is a compact spatial camera designed specifically for creating high-quality 3D Gaussian Splatting environments.

Simply walk naturally through the environment while PortalCam records LiDAR and high-resolution imagery. The captured data is then processed through the XGRIDS Lixel CyberColor workflow to create an immersive photorealistic 3D scene.

PortalCam is designed for applications where visual realism and spatial presentation are the primary goal, including real estate, film production, virtual production, immersive content and digital experiences.

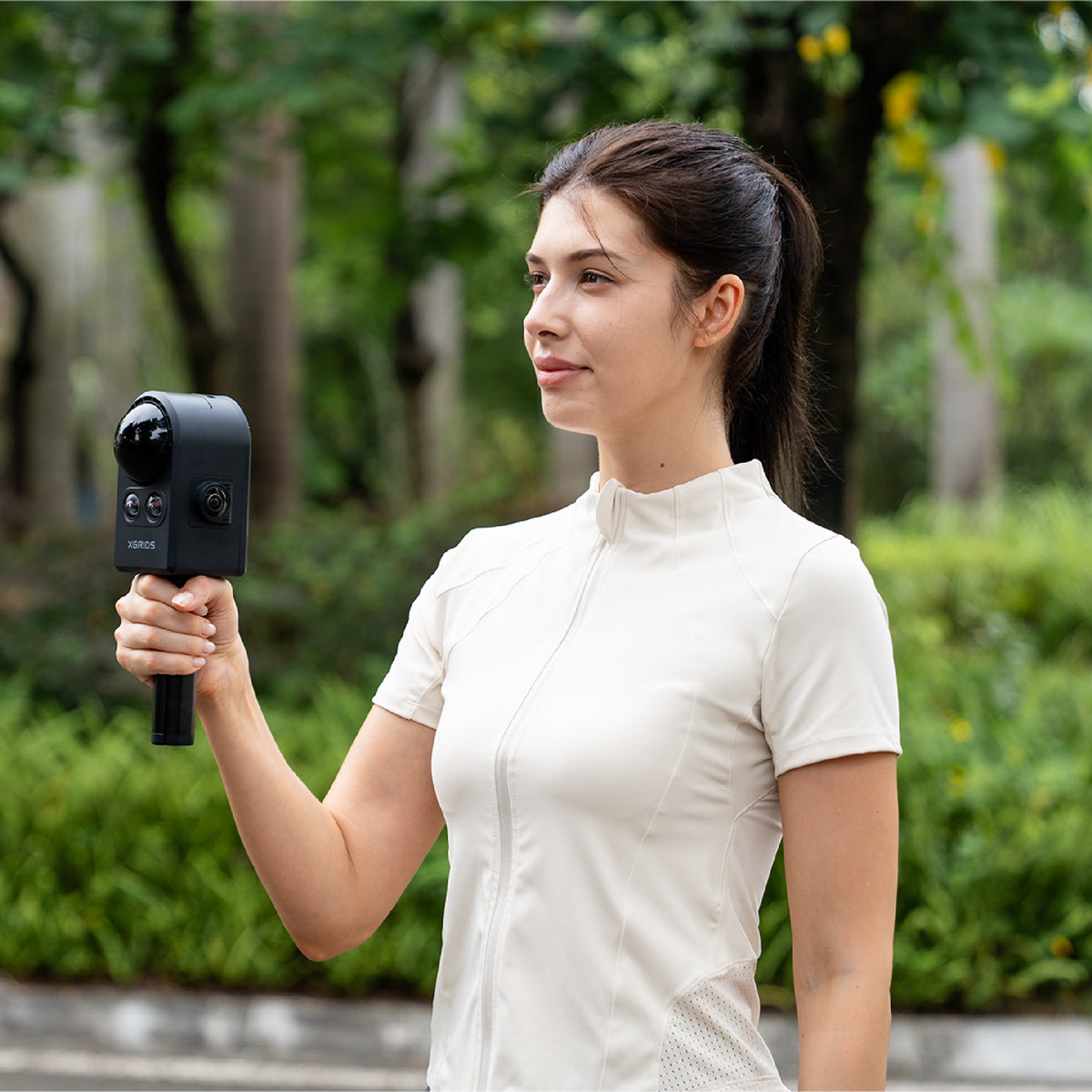

XGRIDS PortalCam being used handheld outdoors

Just Walk and Capture

PortalCam eliminates the complicated capture process associated with traditional photogrammetry and many conventional spatial-imaging workflows.

Handheld mobile capture
No station-to-station setup
One-button operation
Live mobile-device control
Designed for indoor and outdoor environments
Automatic reconstruction workflow

A True Spatial Camera

870 g

Ultra-Portable

At less than 900 grams without the tripod, PortalCam is easy to carry through homes, film sets and large environments.

856K

LiDAR Points / Second

Integrated LiDAR records spatial geometry while the camera system captures high-resolution visual information.

4 × 12 MP

Camera Array

Two fisheye and two forward-facing cameras capture rich imagery for photorealistic reconstruction.

PortalCam at a Glance

856K

Points / Second

Integrated LiDAR acquisition.

60 m

Maximum Rated Range

At high-reflectivity targets.

512 GB

Internal Storage

Built-in recording capacity.

60 min

Battery Runtime

Continuous scanning per battery.

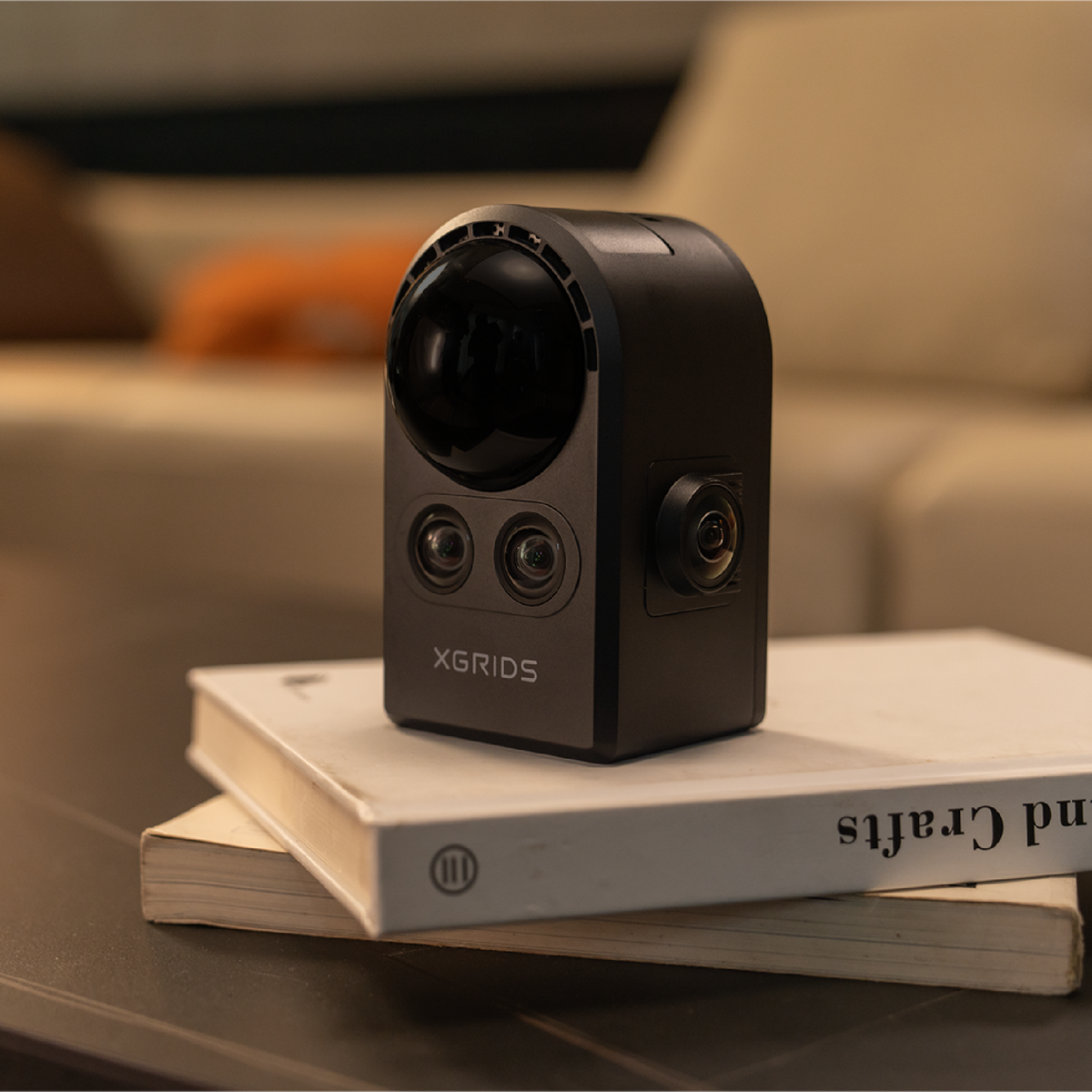

Compact Enough to Go Anywhere

PortalCam measures only approximately 130 × 90 × 77 mm, making it small enough to transport easily between locations.

The aerospace-grade aluminum enclosure provides a professional, durable platform without the weight associated with larger reality-capture systems.

180° × 180°

LiDAR Field of View

856,000

Points Per Second

940 nm

Class 1 LiDAR

LiDAR-Assisted Spatial Reconstruction

PortalCam combines imagery with LiDAR geometry to help reconstruct the spatial structure of a captured environment.

Class 1 eye-safe LiDAR
940 nm wavelength
0.1 to 30 m range at 10% reflectivity
Up to 60 m at 90% reflectivity
180° azimuth field of view
180° elevation field of view

Handheld or Tripod Operation

PortalCam can be carried handheld during mobile capture or mounted on the supplied compact tripod when stationary positioning is useful.

An optional extension pole is also available for elevated viewpoints and difficult-to-reach capture positions.

Four-Camera Visual Capture

PortalCam uses a dedicated four-camera array to capture the visual information required for high-fidelity 3DGS reconstruction.

2 fisheye cameras
2 forward-facing cameras
4000 × 3000 resolution per camera
1/2-inch CMOS sensors
200° × 200° fisheye field of view
100° × 85° front-camera field of view

3DGS

Built Specifically for Gaussian Splatting

PortalCam is not simply a conventional laser scanner with color added afterward. Its entire capture workflow is designed around creating photorealistic 3D Gaussian Splatting scenes.

The result is a navigable environment with realistic lighting, textures, perspective changes and spatial depth.

Capture. Process. Apply.

Capture

Walk naturally through the space while PortalCam records imagery and LiDAR information.

Process

Load the captured data into LCC Studio and automatically reconstruct the 3DGS scene.

Apply

Edit, measure, annotate, publish and integrate the reconstructed environment.

Create Immersive Property Experiences

PortalCam is particularly well suited to real estate because the result is more than a set of panoramic images.

Buyers can explore a captured space with natural changes in perspective, making rooms easier to understand before an in-person visit.

XGRIDS states that a roughly 3,000 sq. ft. multi-story property can be captured in about 15 minutes under suitable conditions.

XGRIDS PortalCam real estate capture workflow

FILM

Virtual Production & Pre-Visualization

Capture real locations and bring them into digital production workflows for scouting, blocking and virtual sets.

Capture Locations Once. Use Them Repeatedly.

Film teams can digitize a physical location and use the resulting scene for remote scouting and creative planning.

Remote location scouting
Pre-visualization
Camera blocking
Lighting planning
LED-wall environments
Green-screen production

Immersive virtual environment created with XGRIDS PortalCam

Immersive Content for VR, AR & Web

PortalCam environments can become reusable spatial assets for interactive storytelling, visualization and digital experiences.

PortalCam Applications

Real Estate

Create photorealistic interactive property walkthroughs that allow buyers to understand spaces remotely.

Film Production

Digitize locations for scouting, pre-production, blocking and virtual-production environments.

Content Creation

Build immersive 3D environments for storytelling, entertainment and digital marketing.

VR / AR

Capture real-world spaces for immersive virtual and augmented reality experiences.

Cultural Heritage

Preserve locations and environments as highly realistic navigable digital records.

Personal Memories

Preserve important places, events and environments in immersive spatial 3D.

Powered by Lixel CyberColor

After capture, PortalCam data is processed through XGRIDS' LCC Studio software.

LCC provides the reconstruction, editing and publishing environment for PortalCam 3DGS scenes.

Automatic 3DGS reconstruction
Scene editing
Measurements
Annotations
Publishing and sharing
SDK integration
Unreal Engine workflow support
Unity workflow support

LCC

Lixel CyberColor

From Capture to Digital Experience

PortalCam and LCC provide an integrated workflow from physical environment to interactive 3D scene.

Wireless, Mobile & Field Ready

Wi-Fi 6

High-Speed Wireless

Supports 802.11 a/b/g/n/ac/ax across 2.4 GHz and 5 GHz bands.

20 m

Wireless Range

Mobile app communication range up to approximately 20 meters.

BT 5.2

Bluetooth

Integrated Bluetooth connectivity supports mobile-device interaction.

60 MIN

Continuous Capture

The removable battery allows quick replacement for extended field sessions.

Removable Battery System

PortalCam uses a removable 23.04 Wh lithium-ion battery.

Approximately 60 minutes continuous operation
Removable battery
0–90% charge in approximately 70 minutes
0–100% charge in approximately 90 minutes
PD fast-charging support

PortalCam vs. XGRIDS Lixel K2

These two XGRIDS systems serve different primary workflows.

Choose PortalCam when the goal is highly photorealistic 3DGS environments for visualization, real estate, film, virtual production, VR/AR and immersive experiences.

Choose the Lixel K2 when the project requires engineering point clouds, meshes, Scan-to-BIM or other measurement-focused reality-capture deliverables.

XGRIDS PortalCam Gallery

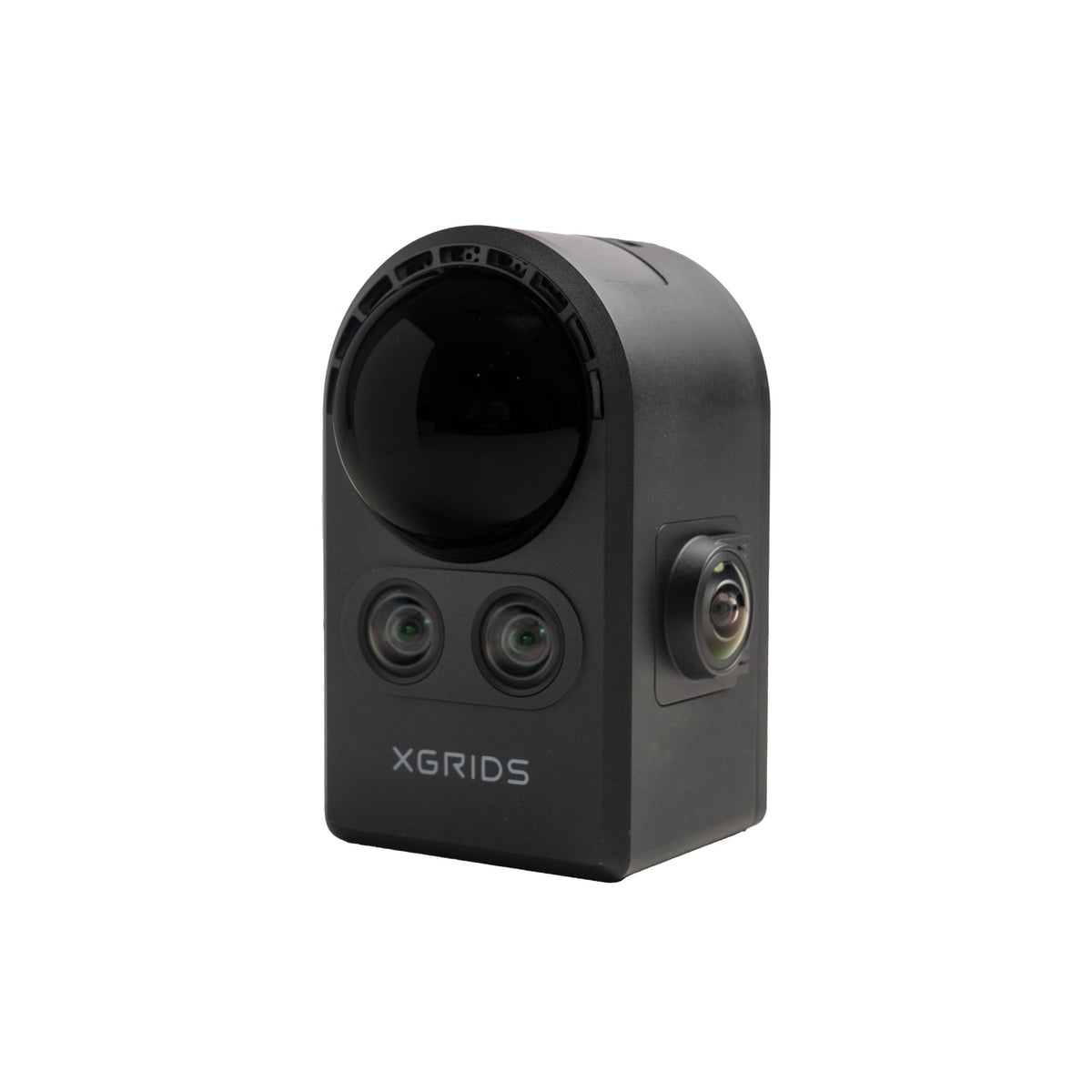

PortalCam

LiDAR and multi-camera spatial capture platform.

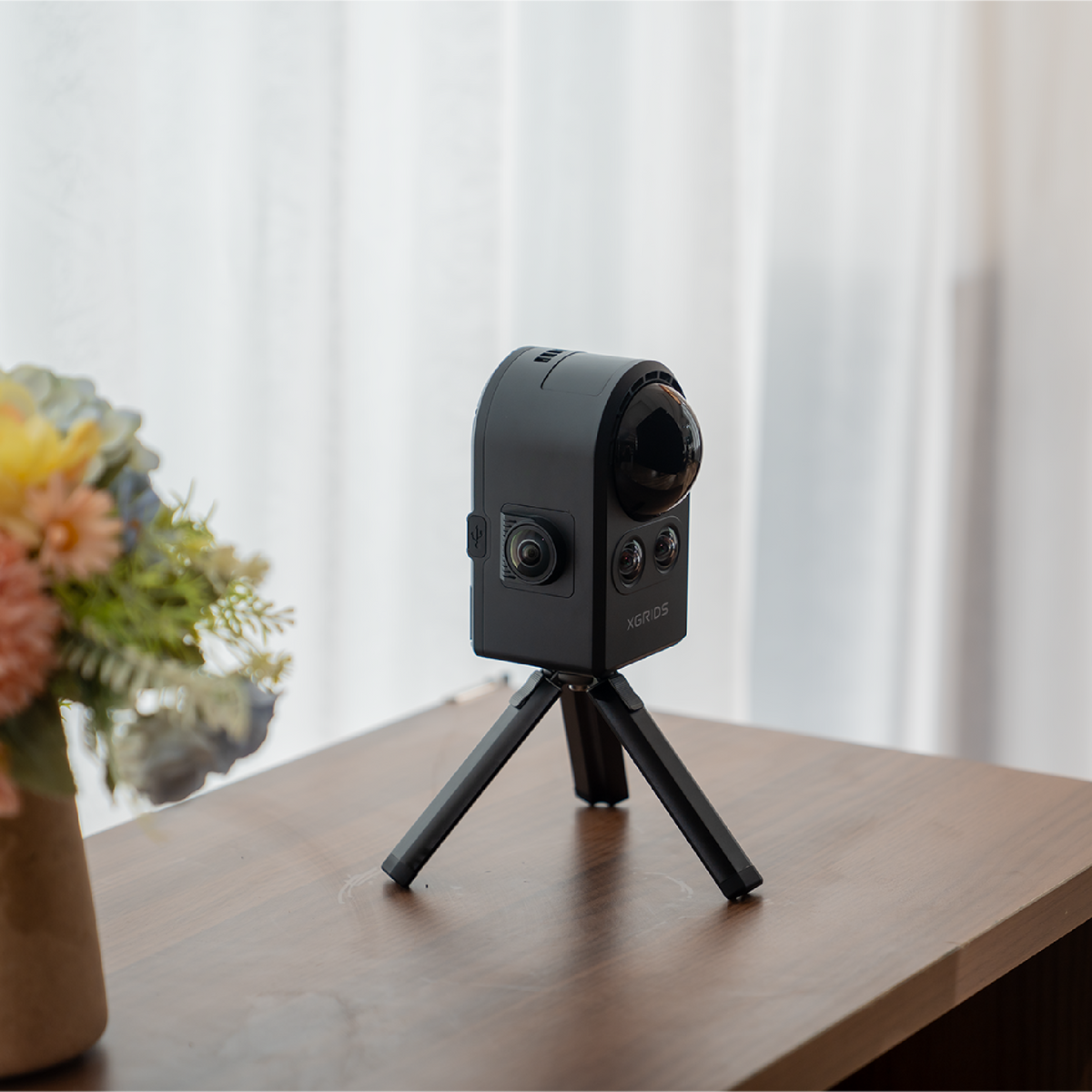

Compact Tripod

Portable configuration for stationary placement.

Multi-Camera System

Four-camera visual capture for photorealistic reconstruction.

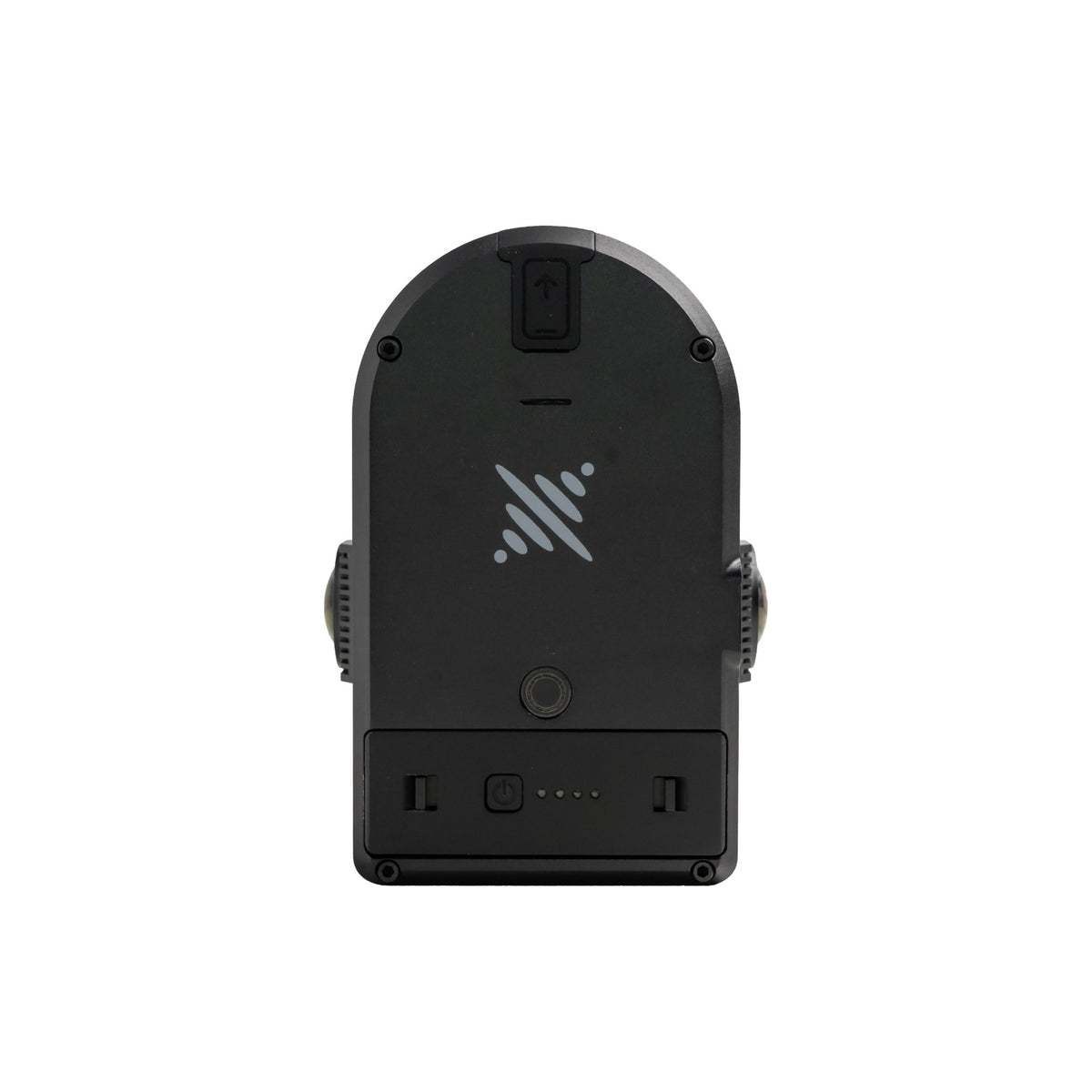

Removable Battery

Compact rear-mounted power system.

Ultra-Portable

Only 870 grams without the tripod.

Mobile Capture

Walk naturally while capturing the environment.

XGRIDS PortalCam Technical Specifications

Physical Specifications
Product Type	Handheld 3D Spatial Camera / 3DGS Capture System
Body Weight	870 g / 1.9 lb Without Tripod
Dimensions	130 × 90 × 77 mm / 5.1 × 3.5 × 3.0 in
Housing	Aerospace-Grade Aluminum Alloy
Power Consumption	<19 W
LiDAR System
Laser Classification	Class 1 / 940 nm
Point Rate	856,000 Points / Second
Scanning Range	0.1–30 m at 10% Reflectivity
Maximum Rated Range	60 m at 90% Reflectivity
LiDAR Field of View	180° Azimuth × 180° Elevation
Camera System
Number of Cameras	4
Camera Configuration	2 Fisheye + 2 Front-Facing
Image Resolution	4000 × 3000 Pixels
Sensor	1/2" CMOS
Shutter	Rolling Shutter
Fisheye Camera FOV	200° × 200° Each
Front Camera FOV	100° × 85° Each
Storage & Connectivity
Internal Storage	512 GB
Optional External Storage	512 GB / 1 TB SSD
Data Interface	USB 3.0
GPS Module	Supported
Wi-Fi	802.11 a/b/g/n/ac/ax, 2.4 GHz & 5 GHz
Bluetooth	Bluetooth 5.2
Wireless Range	Approximately 20 m / 65.6 ft
Battery
Battery Type	Removable Lithium-Ion
Battery Capacity	23.04 Wh
Continuous Operating Time	Approximately 60 Minutes
0–90% Charge Time	Approximately 70 Minutes
0–100% Charge Time	Approximately 90 Minutes
Environmental
Operating Temperature	-20°C to +45°C / -4°F to 113°F
Charging Temperature	5°C to 30°C
Software & Outputs
Capture Application	LCC Scan
Processing Software	LCC Studio / Lixel CyberColor
Primary Output	3D Gaussian Splatting Spatial Models
Supported Export Formats	LCC, PLY
SDK / Integration	Unreal Engine, Unity, Web and Custom Workflows

Is PortalCam the Right XGRIDS System for You?

PortalCam is optimized for photorealistic spatial visualization and 3D Gaussian Splatting.

If your primary requirement is engineering-grade point-cloud data, Scan-to-BIM, surveying or measurement-focused deliverables, ask Rapid Scan 3D about the XGRIDS Lixel K2 or Lixel L2 Pro.

Purchase the XGRIDS PortalCam from Rapid Scan 3D

Rapid Scan 3D can help determine whether PortalCam is the right platform for your real-estate, virtual-production, visualization or immersive-content workflow.

Application Assistance

Evaluate PortalCam for your property, film, VR/AR or content-creation application.

XGRIDS Product Selection

Compare PortalCam with the Lixel K2 and Lixel L2 Pro based on your required deliverables.

Complete Workflow Guidance

Understand the capture, LCC processing, editing and sharing workflow before purchase.

Turn Real Spaces into Photorealistic 3D Experiences

Contact Rapid Scan 3D for XGRIDS PortalCam pricing, demonstrations, software information, application assistance and purchasing options.

REQUEST A QUOTE

XGRIDS PortalCam Specifications & Details
Core Features & Capabilities
LiDAR: ~856,000 points per second; up to 60 m range; 180° × 180° field of view.
Camera Array: Four 12 MP cameras—two front (180° × 150°) and two fisheye (200° × 200°).
Onboard Processing: Integrated GPU, IMU, and AI algorithms handle automated capture and data processing.
Capture Speed: Up to 200 m² scanned in approximately 15 minutes; full 3D model generation in about 5 hours.
Weight & Design: Lightweight handheld form, under 900 g—portable for both indoor and outdoor use.
Output & Workflows: Produces highly compressed (up to 90%) but detailed spatial models, automatically processed via XGRIDS LCC/LCC Studio software. Export formats include Unity, Unreal Engine, PLY, USDZ, LCC, and more.
Use Cases & Applications: Ideal for real estate virtual tours, film and virtual production, gaming/VR/AR, cultural heritage preservation, personal events, mapping, and more.
Package Options
Standard Kit
PortalCam device, tripod, 1× battery, charger, cables, phone mount, protective cover, case
12-month LCC Studio Basic subscription
Premium Kit
Same accessories plus an extra battery
12-month LCC Studio Premium subscription
