High-speed, large-format dual-extrusion 3D printing designed for industrial prototypes, tooling, fixtures and production applications.

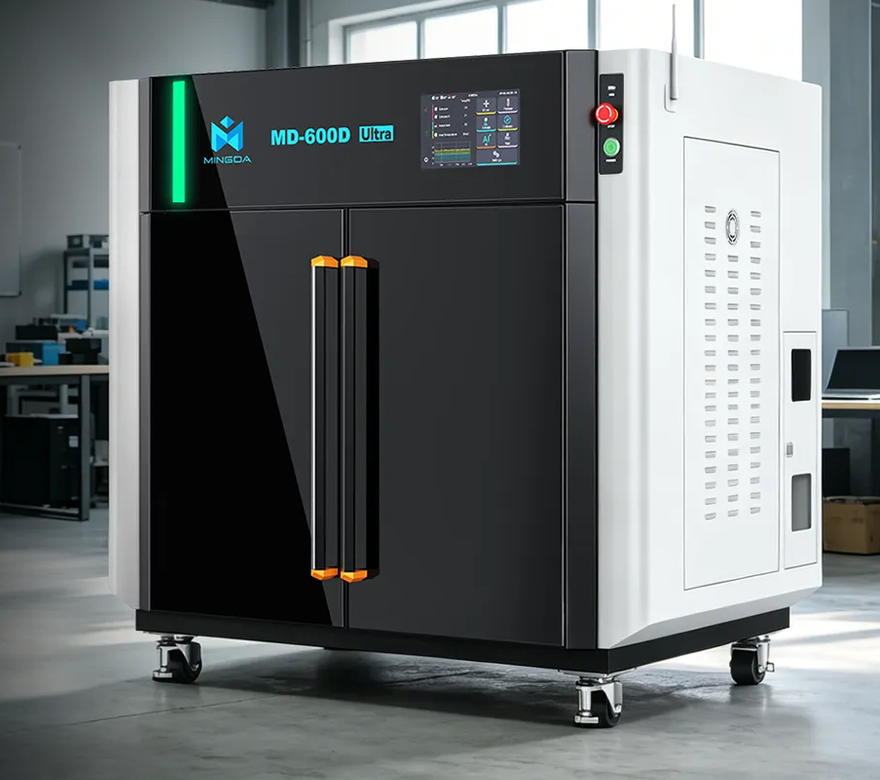

REQUEST A QUOTE VIEW SPECIFICATIONSThe MINGDA MD-600D Ultra combines a massive 600 × 600 × 600 mm build volume with intelligent calibration, AI monitoring, dual high-temperature extrusion and high-speed industrial printing.
It is engineered for businesses that need to manufacture large, complex components using both standard and engineering-grade thermoplastics.
Produce large prototypes and industrial components in a single build rather than dividing them into numerous smaller parts.
Print conventional thermoplastics along with carbon-fiber, glass-fiber and high-performance engineering materials.
Advanced motion control helps reduce production time for demanding large-format printing applications.
The Ultra platform introduces intelligent automation and mechanical improvements intended to make large-format industrial printing easier, faster and more reliable.
Approximately 33% lighter than the previous design, helping reduce motion inertia and vibration during rapid movement.
Camera-based calibration automatically determines XY nozzle offsets for more accurate dual-material printing.
One-touch probe calibration eliminates traditional manual paper-based Z-offset adjustment.
AI vision can detect printing problems including blobs, first-layer abnormalities, warping and spaghetti failures.
MINGDA's upgraded computing platform provides quicker response, improved stability and a smoother interface.
Monitor jobs remotely and perform supported operations including start, pause and stop from a mobile device.
Large-format parts can require many hours or days to manufacture. The MD-600D Ultra combines fast motion with high-flow extrusion to dramatically improve productivity.
The MD-600D Ultra's dual extrusion system expands the range of complex industrial components that can be manufactured.
The upgraded assisted feeding system increases feeding force while optimizing extrusion and retraction control for long-duration industrial jobs.
Dual cooling fans increase airflow by approximately 40%, helping improve solidification while reducing stringing, oozing and warping during demanding prints.
High-temperature extrusion allows the MD-600D Ultra to process standard polymers as well as reinforced engineering materials.
PLA
PETG
PETG-CF
PET-CF / PET-GF
ABS-CF / ABS-GF
PA12-CF
HtPA-CF / HtPA-GF
HtPA-GF25 / HtPA-CF25
PPS
PPS-CF / PPS-GF
Support materials
The large build envelope enables full-scale prototypes, manufacturing tools, molds, patterns and production components to be manufactured without excessive assembly.
The integrated vision system can identify common printing failures and issue warnings during unattended long-duration jobs.
Industrial prints may operate for many hours or several days. Intelligent monitoring adds another layer of protection against wasted material and failed production time.
Large integrated touchscreen provides centralized printer status and system controls.
Automatic leveling simplifies print preparation and helps establish a consistent first layer.
Magnetic PEI build surface provides strong adhesion and easy removal after printing.
Resume functionality allows interrupted jobs to continue after power is restored.
Printing pauses when filament runs out so material can be replaced.
Wi-Fi and Ethernet connectivity enable supported remote monitoring and control.
Prototypes, custom components, housings, ducts and manufacturing aids.
Lightweight assembly aids, checking fixtures and custom manufacturing tools.
Large engineering prototypes produced using reinforced thermoplastics.
Patterns, forming tools, molds and tooling for downstream manufacturing processes.
Customized and low-volume components without conventional tooling.
Large-format additive manufacturing for universities, laboratories and development environments.
| Printing | |
|---|---|
| Technology | FDM |
| Build Volume | 600 × 600 × 600 mm |
| Extruders | Dual Extruders / Dual Nozzle |
| Filament Diameter | 1.75 mm |
| Standard Nozzle | 0.6 mm |
| Optional Nozzles | 0.4 mm / 0.8 mm |
| Temperature | |
| Nozzle Temperature | Maximum 350°C |
| Heated Bed | Maximum 110°C |
| Chamber Temperature | 45°C |
| Performance | |
| Maximum Printing Speed | 300 mm/s |
| Recommended PLA Speed | 200 mm/s |
| Recommended PETG Speed | 180 mm/s |
| Recommended PET-CF Speed | 100 mm/s |
| Maximum XY Travel Speed | 500 mm/s |
| Control | |
| Firmware | Klipper |
| Display | 10-inch Color Touchscreen |
| Connectivity | Wi-Fi, Ethernet, USB |
| AI Monitoring | AI Print Detection |
| XY Calibration | Automatic Camera Calibration |
| Z Offset | Automatic Probe Calibration |
| Mechanical | |
| Build Platform | 10 mm Aluminum Plate + Magnetic PEI |
| Leveling | Fast Automatic Leveling |
| Motion System | Closed-Loop Control |
| Printer Design | Fully Enclosed |
| Filament Capacity | Two 3 kg Rolls |
| Dimensions | |
| Machine Dimensions | 1325 × 965 × 1265 mm |
| Package Dimensions | 1430 × 1080 × 1450 mm |
| Shipping Weight | 335 kg |
Contact Rapid Scan 3D for pricing, application assistance, material recommendations and information about the MINGDA MD-600D Ultra.
