Professional large-format IDEX 3D printing with 500°C extrusion and a 120°C actively heated chamber for demanding engineering and high-performance materials.
REQUEST A QUOTE VIEW SPECIFICATIONS

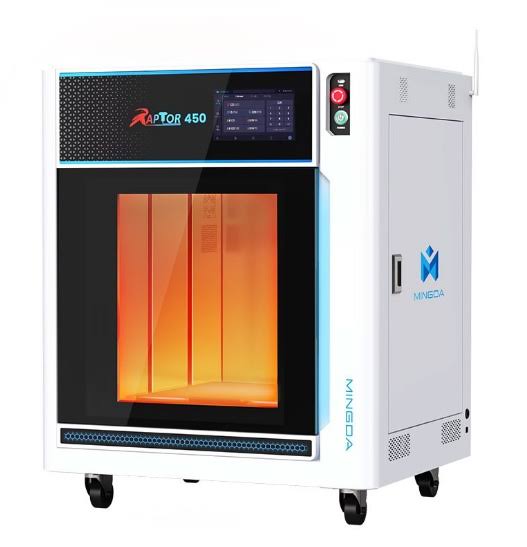

The MINGDA Raptor 450 is an industrial high-temperature FDM 3D printer designed for demanding engineering applications where thermal control, material performance and dimensional stability are essential.
Its combination of a 450 × 450 × 500 mm build volume, IDEX independent dual extrusion, 500°C hot end and 120°C actively heated chamber enables applications well beyond conventional desktop FDM printing.
Print advanced engineering polymers including PEEK, PC, PA and reinforced composite materials.
Maintain a stable thermal environment during demanding high-temperature printing.
Two independently moving print heads enable duplication, mirror, support and dual-material printing modes.
The Raptor 450's high-temperature extrusion platform greatly expands the range of engineering thermoplastics that can be processed.
Successful high-performance polymer printing requires control of more than nozzle temperature. The Raptor 450 manages the complete print environment.
High-temperature extrusion for advanced polymers.
Actively heated and temperature controlled.
High-temperature platform improves adhesion.
Heated spool storage for moisture-sensitive materials.
A high-temperature build platform helps maintain strong first-layer adhesion and dimensional stability when printing engineering polymers.
This works together with the heated chamber to help reduce thermal contraction, lifting and warping on demanding materials.
Each Raptor 450 print head moves independently along the X axis, providing production modes that conventional dual-nozzle printers cannot offer.
Produce two identical parts simultaneously to improve throughput.
Manufacture matching left-hand and right-hand components during one print cycle.
Use one extruder for the engineering material and the other for compatible support material.
Combine compatible colors or materials within a single component.
Independent dual extrusion makes it possible to combine a structural engineering polymer with a dedicated support material.
This allows designers to manufacture complex overhangs, internal geometry and organic forms that can be difficult or impossible with conventional single-material FDM.
The Raptor 450 combines industrial thermal management with IDEX productivity and intelligent machine control in a fully enclosed system.
The build envelope provides room for substantial functional parts while maintaining the tightly controlled thermal environment required for high-performance polymers.
From standard industrial thermoplastics to high-performance polymers and reinforced composites, the Raptor 450 provides exceptional material flexibility.
PEEK is valued for excellent chemical resistance, mechanical performance and elevated-temperature capability.
Printing materials in this class requires tightly controlled nozzle, chamber, build plate and filament conditions — the type of environment the Raptor 450 was engineered to provide.
The Raptor 450 combines high-temperature capability with high-speed motion and intelligent Klipper-based machine control.
High-temperature extrusion places substantial thermal load on the print head. The Raptor 450 incorporates water cooling for the extruder and heat-break system.
A remote air-supply system provides model cooling without placing a conventional cooling system directly on the moving print head.
The enclosed machine incorporates HEPA filtration as part of its industrial printing architecture.
Camera-assisted XY calibration helps accurately align the independent print heads.
Probe-based calibration simplifies Z-offset setup and first-layer preparation.
Automated leveling reduces setup time and improves first-layer consistency.
Integrated AI monitoring adds process oversight during long industrial prints.
Printing pauses when a filament interruption is detected.
Resume capability helps protect long-duration production jobs after power interruption.
Independent extruders make the Raptor 450 useful for both complex single parts and higher-throughput production.
Wi-Fi and Ethernet connectivity enable the Raptor 450 to integrate into modern production environments.
High-temperature capability, IDEX and engineering material support make the Raptor 450 suitable for demanding professional applications.
Lightweight functional components, high-temperature parts, tooling and prototypes.
Functional prototypes, manufacturing aids, custom parts and low-volume components.
Advanced polymer testing, engineering research and material development.
Development prototypes, fixtures and specialized custom components.
Jigs, fixtures, tooling, replacement parts and production-line components.
Specialized engineering parts for demanding environmental applications.
Fully enclosed high-temperature IDEX manufacturing platform.
Independent extruders support efficient duplicate and multi-material workflows.
Engineered for demanding high-performance thermoplastics.
Produce complex geometry using a dedicated support-material extruder.
450 × 450 × 500 mm build capacity for substantial industrial components.
Networked machines can support larger industrial additive-manufacturing workflows.
| Printing | |
|---|---|
| Model | Raptor 450 |
| Technology | FDM / Fused Deposition Modeling |
| Build Volume | 450 × 450 × 500 mm |
| Copy Mode | 450 (2 × 225) × 450 × 500 mm |
| Mirror Mode | 390 (2 × 195) × 450 × 500 mm |
| Extrusion System | IDEX - Independent Dual Extruders |
| Standard Nozzle | 0.4 mm |
| Optional Nozzles | 0.6 mm / 0.8 mm |
| Layer Height | 0.16 - 0.24 mm with standard nozzle |
| Filament Diameter | 1.75 mm |
| Print File | G-code |
| Temperature | |
| Maximum Nozzle Temperature | 500°C |
| Maximum Bed Temperature | 130°C |
| Maximum Chamber Temperature | 120°C |
| Spool Box Drying | Up to 50°C |
| Performance | |
| Maximum Rated Print Speed | 300 mm/s |
| Input Shaping | Yes |
| Materials | |
| Compatible Filaments | PEEK, ABS, ASA, PETG, ABS-CF, PC, PA, PC-CF, PET-CF, PET-GF and other compatible engineering materials |
| Control & Connectivity | |
| Firmware | Klipper |
| Computing Platform | MINGDA PI |
| Display | 10-Inch Color Touchscreen |
| Connectivity | Wi-Fi, Ethernet, USB |
| XY Offset Calibration | Camera Calibration |
| Z-Offset Calibration | Probe Calibration |
| Automatic Leveling | Fast Auto Leveling |
| AI Detection | Yes |
| Door Open Detection | Yes |
| Filament Detection | Pause Printing |
| Machine Detection | Power-On Self-Check |
| Remote Management | Remote Monitoring, Control & Printing |
| Power-Loss Recovery | Yes |
| Cooling & Filtration | |
| Model Cooling | Remote Air Supply |
| Extruder / Heat Break Cooling | Water Cooling |
| Air Filtration | HEPA Filter |
| Mechanical | |
| Build Plate Movement | Z Axis / Vertical |
| Motors | Stepper Motors |
| Thermal Insulation | Bellows Cover |
| Printing Platform | Thick Aluminum Plate + PEI |
| Printing Chamber | Fully Enclosed Chassis |
| Filament Holders | 2 × Maximum 1 kg Spools |
| Software | |
| Slicing Software | MINGDA Slicer |
| Operating Systems | Windows / macOS |
| Supported Formats | .3MF, .STL, .STP, .STEP, .AMF, .OBJ |
| Electrical & Safety | |
| Maximum Power | 3200 W |
| Rated Voltage | 220 V |
| Safety | Warning Light + Emergency Stop |
| Certification | CE |
| Dimensions | |
| Machine Dimensions | 877 × 799 × 1262 mm |
| Package Dimensions | 980 × 900 × 1430 mm |
