Scan. Measure. Compare. Inspect. Report.
SCANOLOGY ScanViewer is an integrated 3D scanning and inspection software platform designed to take users from physical part capture to dimensional analysis in one streamlined workflow.
ScanViewer combines scanner control, point-cloud capture, mesh generation, CAD comparison, dimensional measurement, GD&T, color deviation maps and inspection reporting.
SCANOLOGY currently describes ScanViewer as a free professional 3D inspection software platform for compatible SCANOLOGY scanning systems.
Instead of capturing data in one application and moving immediately into another program, ScanViewer combines scanner operation, 3D data processing and dimensional inspection into a single professional environment.
Capture dense point-cloud data directly from compatible SCANOLOGY professional 3D scanners.
Automatically generate polygon mesh data from captured point clouds for inspection and downstream engineering.
Align measured scan data to the nominal CAD model and analyze dimensional differences.

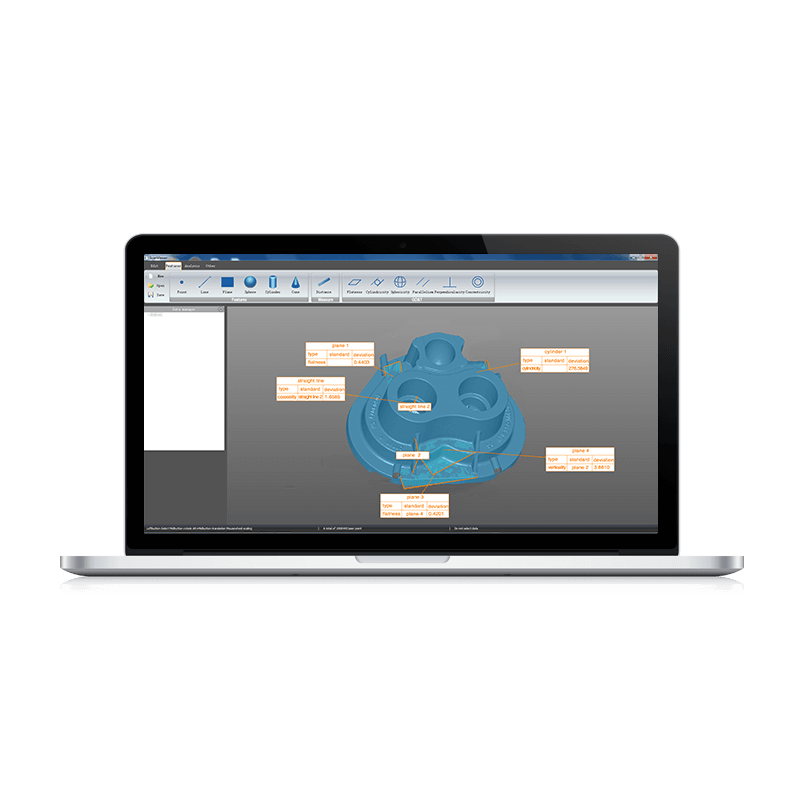

Create geometric features and evaluate dimensions and geometric tolerances directly from scanned data.
Display dimensional differences visually across the complete measured surface.
Generate measurement results for engineering, manufacturing and quality-control teams.
ScanViewer allows users to create inspection features directly from captured 3D geometry and perform dimensional analysis without restricting inspection to a small number of manually probed points.
Tools include:
ScanViewer supports multiple alignment methods for registering captured 3D data against nominal CAD geometry.

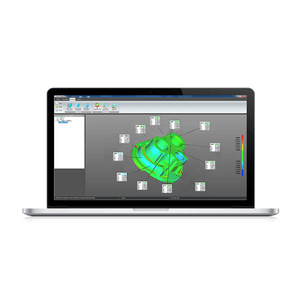

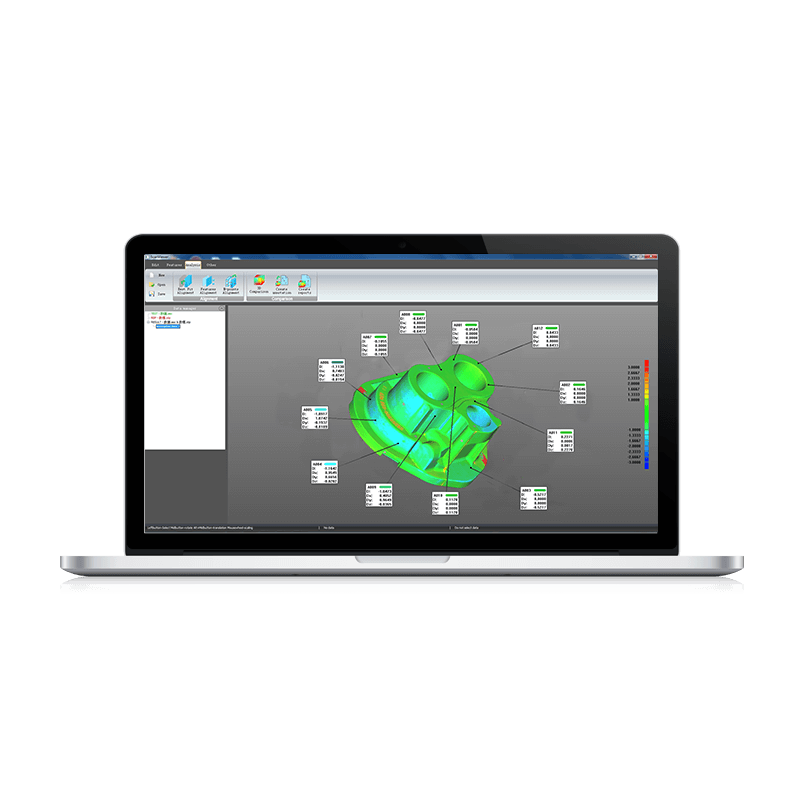

After alignment, differences between the manufactured component and CAD model can be displayed as a color deviation map.
This makes it easier to identify:

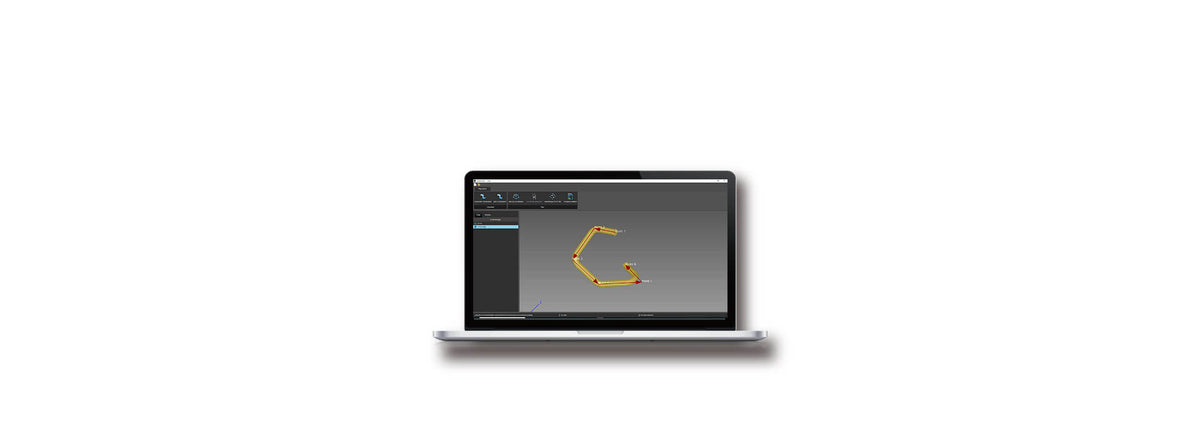

ScanViewer includes specialized pipe inspection functionality for manufacturing and tube-bending applications.
The software can process scanned tube geometry and export YBC / LRA data that can be used to help correct deviations in compatible pipe-bending workflows.
Capture the physical component with a compatible SCANOLOGY 3D scanner.
Create point-cloud and polygon mesh data from the measurement.
Register measured geometry against the nominal CAD model.
Analyze deviations, dimensions and GD&T and create measurement results.
Dense 3D scan data provides engineers with significantly more measurement information than a limited set of manually collected points.
ScanViewer can be used to evaluate:
Color maps provide an immediate visual representation of how the measured part differs from its intended CAD geometry.
Instead of reviewing only rows of numbers, engineering and manufacturing teams can quickly see where a component is:
ScanViewer was designed to provide a single workflow for compatible SCANOLOGY scanners rather than separating basic scan acquisition and dimensional inspection into disconnected applications.
Captured data can also be exported for downstream:
ScanViewer integrates the core stages of the professional 3D measurement workflow for compatible SCANOLOGY scanners.
Compare production components against CAD and identify dimensional variation.
Inspect castings, body panels, tooling and mechanical components.
Analyze precision components, structures and manufacturing tooling.
Evaluate wear, repair requirements and manufacturing deviation.
Capture geometry for use with downstream CAD reconstruction software.
Inspect bent tubes and export YBC/LRA correction information.
Create digital geometry from physical objects for design and prototype workflows.
Review captured geometry for engineering, documentation and digital presentation.
ScanViewer is designed to provide a one-stop scanning and inspection workflow with compatible SCANOLOGY handheld and industrial 3D measurement systems.
Capture compact industrial components and perform dimensional inspection.
Work with compatible multi-mode industrial scanning systems.
Process optically tracked measurement data from larger industrial components.
Analyze large-area scan data for engineering and inspection.
Support data generated by compatible automated inspection workflows.
Move directly from scanning into analysis without leaving the ScanViewer environment.
Create and measure geometric features from captured 3D scan data.
Compare measured surfaces against nominal CAD geometry.
Analyze bent tubes and generate measurement data for correction.
Use ScanViewer for manufacturing-specific 3D inspection workflows.
Rapid Scan 3D can help configure ScanViewer around your SCANOLOGY scanner, dimensional-inspection requirements and downstream engineering workflow.
Get assistance configuring compatible SCANOLOGY scanners and ScanViewer.
Learn CAD alignment, dimensional measurement, color maps and GD&T workflows.
Connect scanning, inspection and reverse engineering into a complete workflow for your application.
ScanViewer is SCANOLOGY's integrated 3D scanning and inspection software designed for compatible professional 3D scanning systems.
SCANOLOGY currently describes ScanViewer as free 3D inspection software. Available functionality and compatibility can vary by scanner model and software version.
Yes. ScanViewer combines data acquisition, point-cloud processing, mesh generation and inspection for compatible SCANOLOGY scanners.
Yes. Multiple alignment functions can be used to register measured scan data against CAD geometry for dimensional inspection.
Yes. ScanViewer can display dimensional deviation across the measured surface using color-map inspection.
Yes. SCANOLOGY lists feature creation, feature analysis, distance measurement, dimensional analysis and geometric tolerance inspection.
Yes. ScanViewer includes dedicated pipe inspection functionality and can export YBC/LRA data for compatible pipe-bending workflows.
Yes. Captured point clouds can be processed into polygon mesh data.
Yes. ScanViewer can create and export 3D scan data for use in downstream reverse-engineering and CAD software.
Yes. ScanViewer supports inspection reporting for dimensional analysis and manufacturing evaluation.
Contact Rapid Scan 3D with your SCANOLOGY scanner model. We can help confirm compatibility, current software availability, installation and training options.
Tell Rapid Scan 3D which SCANOLOGY scanner you're using and what you need to inspect. We can help configure ScanViewer for scanning, CAD comparison, GD&T, dimensional analysis and reporting.
