High-speed industrial 3D printing with a massive 1000 × 1000 × 1000 mm build volume, Klipper firmware and 350°C engineering-material capability.
REQUEST A QUOTE VIEW SPECIFICATIONS

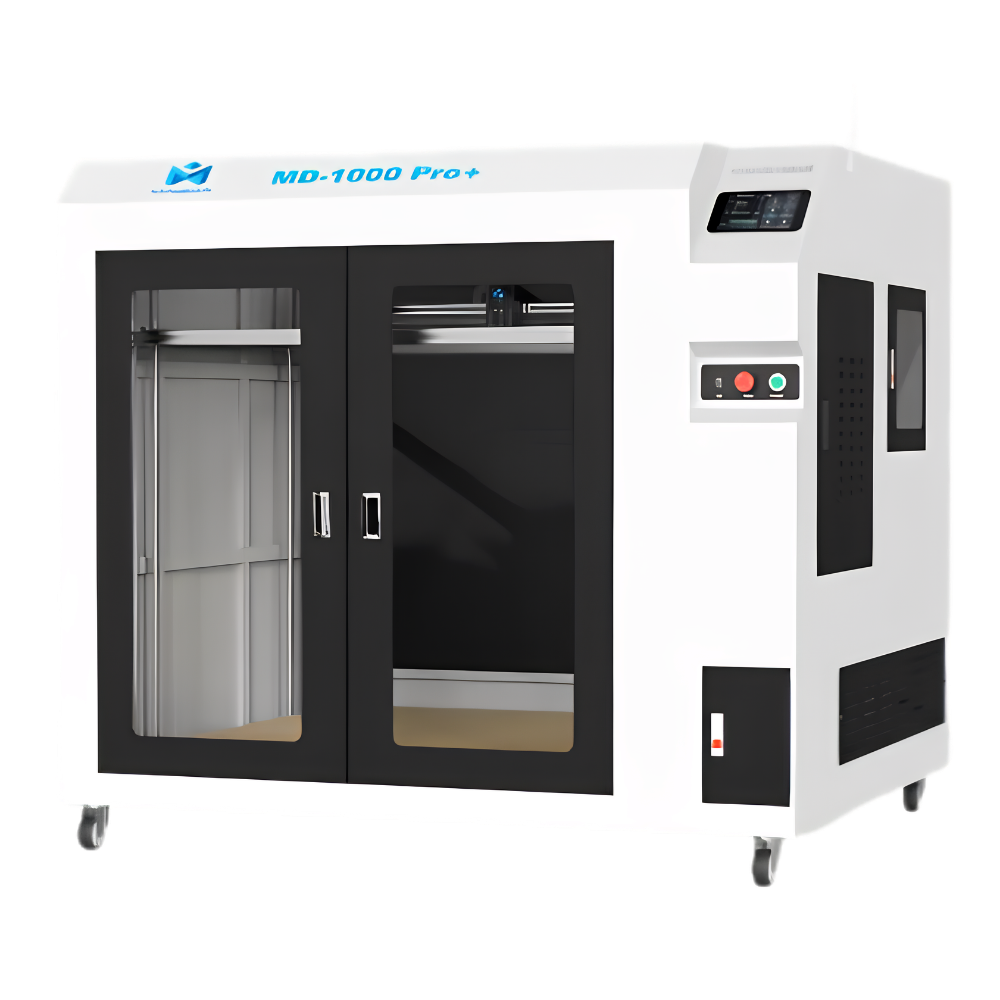

The MINGDA MD-1000 Pro+ is a fully enclosed large-format FDM 3D printer designed for full-scale prototypes, factory tooling, jigs, fixtures, patterns, molds and end-use parts.
Its enormous 1000 × 1000 × 1000 mm build volume allows many large parts to be manufactured as one piece instead of being divided, printed separately and assembled afterward.
The fully enclosed machine combines a rigid industrial chassis with precision linear motion and a four-screw Z-axis architecture.
Manufacture full-scale industrial parts with less sectioning and assembly.
Klipper firmware and input shaping help improve productivity on large jobs.
Print reinforced carbon-fiber, glass-fiber and high-temperature materials.

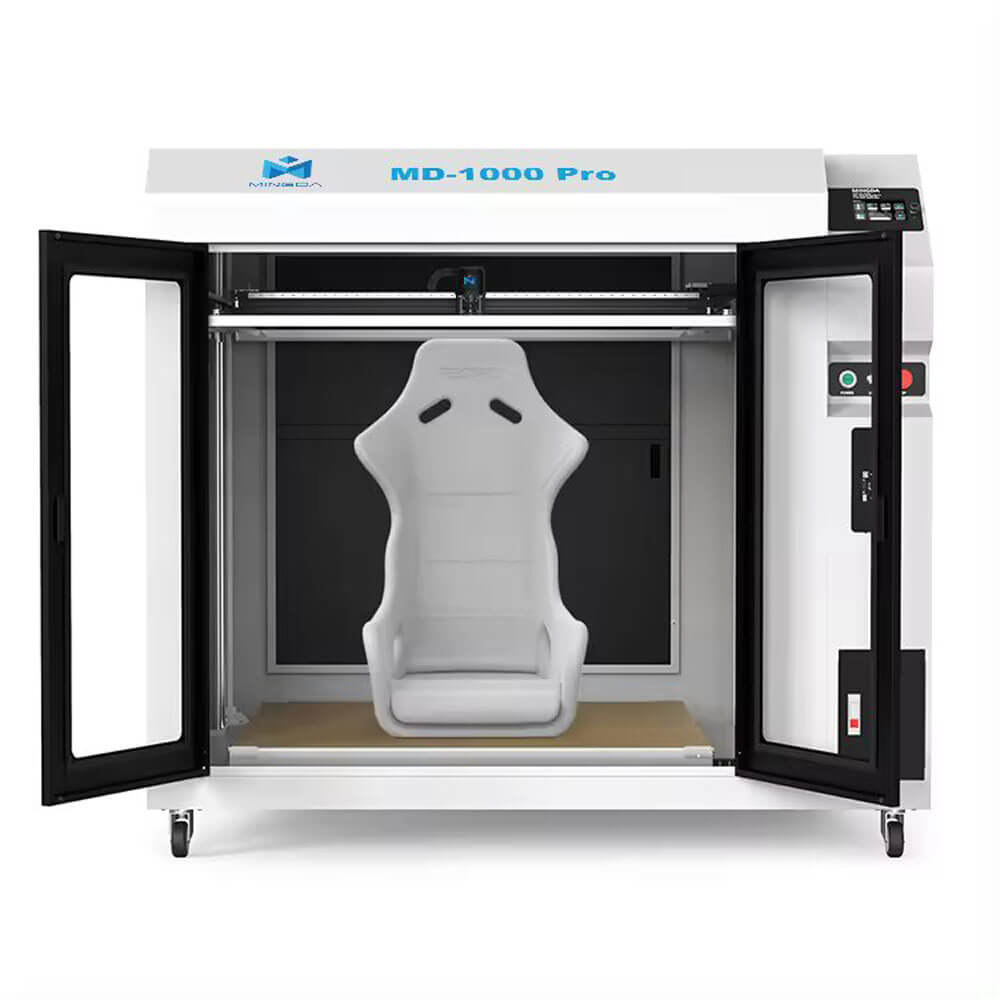

The cubic-meter build chamber provides enough room for large functional components, seating, housings, tooling and full-scale prototypes.
MINGDA rates the MD-1000 Pro+ at up to 300 mm/s maximum printing speed and 10,000 mm/s² peak acceleration.
A one-meter build chamber allows engineers to produce substantial automotive parts at full or near-full scale.
Applications can include wheels, seats, bumper components, trim, housings, ducts and manufacturing aids.
The high-temperature single extrusion system allows the MD-1000 Pro+ to process reinforced industrial thermoplastics.
MINGDA has demonstrated the MD-1000 platform for large lighting and architectural components, showing how the machine can be used beyond conventional engineering prototypes.
The MD-1000 Pro+ uses a high-sensitivity automatic leveling system that measures the large build platform at 25 points.
Industrial linear rails provide smooth, controlled motion across the printer's one-meter XY working area.
This is especially important for maintaining repeatability during long-duration, high-speed large-format printing.
Protect large multi-day jobs against unexpected electrical interruption.
When power is interrupted, MINGDA's UPS functionality can suspend printing and allow the job to continue after power is restored.
The MD-1000 Pro+ can be connected by network or USB and supports remote printing and multi-machine control.
Integrated hardware and software provide a straightforward industrial printing workflow.
Network-connected large-format machines can support engineering departments, production cells and additive manufacturing farms.
Full cubic meter.
Engineering materials.
Maximum printing speed.
Integrated interface.
Produce full-scale functional prototypes and iterate designs rapidly.
Manufacture large customized factory tooling and assembly aids.
Replace expensive traditional patterns and tooling.
Produce customized and low-volume production components.
Current MINGDA Pro+ industrial platform.

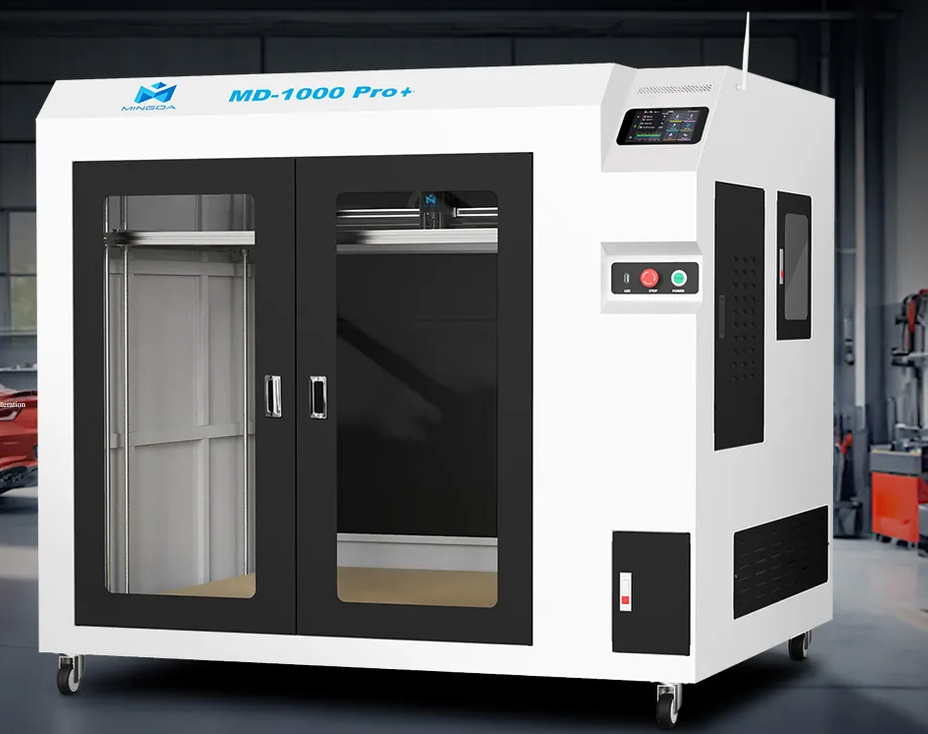

Industrial enclosure with large front access.
One-meter build volume for substantial parts.
Large-scale functional prototypes.
Oversized display and lighting applications.
Large-format systems operating at scale.
| Printing | |
|---|---|
| Model | MD-1000 Pro+ |
| Technology | FDM / Fused Deposition Modeling |
| Build Volume | 1000 × 1000 × 1000 mm |
| Extruder | Single Extruder |
| Standard Nozzle | 0.6 mm |
| Optional Nozzles | 0.4 mm / 0.8 mm |
| Filament Diameter | 1.75 mm |
| Filament Capacity | 1 spool, maximum 3 kg |
| Temperature | |
| Maximum Extruder Temperature | 350°C |
| Recommended Maximum Temperature | 320°C |
| Maximum Platform Temperature | 110°C |
| Performance | |
| Maximum Print Speed | 300 mm/s |
| Recommended PLA Speed | 200 mm/s |
| Recommended PETG Speed | 180 mm/s |
| Recommended PET-CF Speed | 100 mm/s |
| Peak Acceleration | 10,000 mm/s² |
| Maximum Flow | 40 mm³/s |
| Input Shaping | Yes |
| Materials | |
| Standard Materials | PLA, PETG |
| Engineering Materials | PETG-CF, PET-CF, PET-GF, HtPA-CF, HtPA-GF, PA12-CF, HtPA-GF25 and HtPA-CF25 |
| Control & Connectivity | |
| Firmware | Klipper |
| Slicer | MINGDA Slicer |
| Display | 7-Inch Integrated Touchscreen |
| Printing Method | USB / LAN |
| Wi-Fi | Yes |
| Camera | Integrated |
| Remote Printing | Yes |
| Multi-Machine Control | Yes |
| Machine Features | |
| Auto Leveling | 25-Point Automatic Leveling |
| Motion System | Precision Linear Guide Rails |
| Z Axis | Four-Screw Z Axis |
| Build Chamber | Fully Enclosed |
| Power Recovery | Built-In UPS / Resume Printing |
| Electrical & Dimensions | |
| Input Voltage | 220 V, 50/60 Hz |
| Rated Power | 2200 W |
| Machine Dimensions | 1615 × 1332 × 1466 mm |
Rapid Scan 3D can help evaluate the MD-1000 Pro+ for your large-format prototypes, tooling, molds and engineering-material applications.
Determine whether the one-meter build volume is appropriate for your parts and workflow.
Select standard and reinforced engineering materials for your application.
Integrate large-format additive manufacturing into your engineering and production workflow.
Contact Rapid Scan 3D for MINGDA MD-1000 Pro+ pricing, application assistance, material recommendations and purchasing information.
