Fast, enclosed industrial 3D printing with a 600 × 600 × 600 mm build volume, Klipper firmware and 350°C engineering-material capability.
REQUEST A QUOTE VIEW SPECIFICATIONS

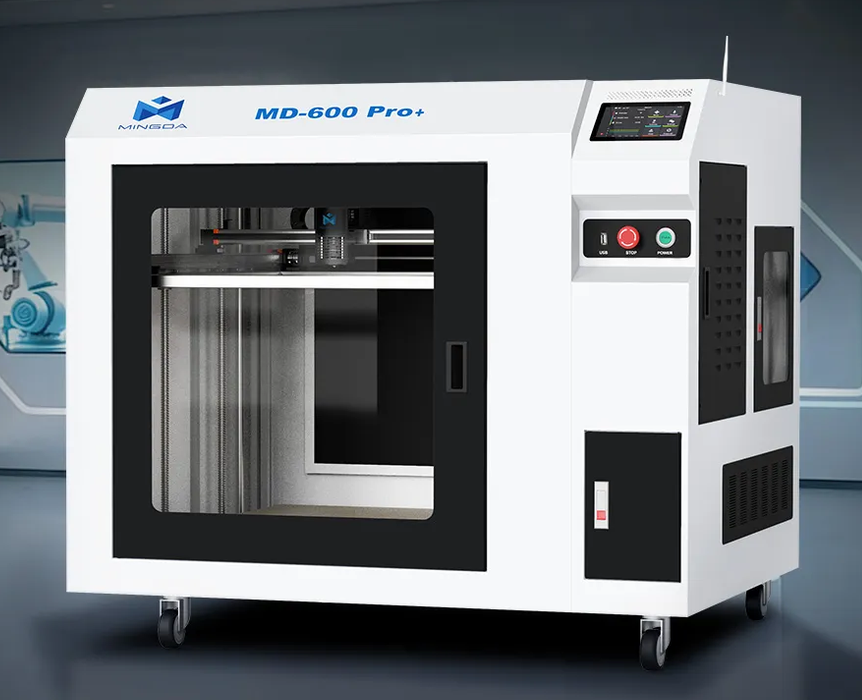

The MINGDA MD-600 Pro+ is a fully enclosed, large-format FDM 3D printer designed for engineering applications, rapid prototyping, tooling and low-volume production.
Its generous 600 × 600 × 600 mm build volume provides the capacity to manufacture large components as single pieces while its 350°C hot end expands material capability beyond conventional desktop systems.
Klipper firmware, input shaping, high-speed motion and MINGDA's integrated control platform make the MD-600 Pro+ an approachable industrial solution for offices, labs and factory floors.
Manufacture substantial prototypes, tooling and production components without excessive sectioning.
Klipper-based motion control provides substantially faster production than conventional large-format systems.
Print carbon-fiber, glass-fiber and high-temperature engineering thermoplastics.
Large build capacity gives engineers greater design freedom while reducing the need for adhesives, mechanical joints and post-print assembly.
MINGDA rates the MD-600 Pro+ at up to 300 mm/s maximum printing speed with peak acceleration up to 10,000 mm/s².
Large printers require a rigid, repeatable motion system to maintain quality across the entire build volume.
The MD-600 Pro+ uses precision linear guide rails designed to improve motion accuracy and surface quality on large-format components.
A large build platform can be difficult to level manually.
MINGDA's automatic leveling system measures the printing surface at 25 points and compensates for bed variation automatically.
The all-metal extrusion system reaches temperatures up to 350°C, allowing the MD-600 Pro+ to process reinforced engineering-grade materials.
MINGDA recommends operating temperatures up to approximately 320°C for normal use.
Engineering-grade material capability.
Large high-temperature build platform.
High-speed industrial printing.
Integrated high-definition interface.
Large industrial parts can require many hours or days to complete.
The integrated UPS system helps protect long print jobs against unexpected electrical interruption.
Reduce the risk of losing large, expensive print jobs due to unexpected power interruption.
MINGDA's control platform combines Klipper-based performance with an intuitive integrated interface.
The MD-600 Pro+ uses an integrated 7-inch high-definition touchscreen rather than a small conventional printer LCD.
Print common thermoplastics as well as carbon-fiber and glass-fiber reinforced engineering materials.
MINGDA showcases the MD-600 Pro+ supporting development work on an autonomous electric vehicle project.
Large-format additive manufacturing supports rapid iteration of vehicle components and prototype assemblies.
Produce large design-validation components without waiting for traditional tooling.
Rapidly test full-size designs before committing to production tooling.
Bring prototyping and development work directly into the engineering environment.
MINGDA also demonstrates the MD-600 Pro+ in the portrait and sculpture industry.
Large models can be 3D printed and then finished and painted to create highly detailed life-size reproductions.
Produce large portrait and sculpture models directly from digital files.
Printed models can be painted and finished for lifelike presentation.
Large-volume printing enables full-scale portrait reproduction.
Ideal for exhibits, themed environments, props and artistic production.
Produce full-scale functional prototypes and iterate designs in hours or days instead of weeks.
Create custom ergonomic tooling and manufacturing fixtures on demand.
Replace expensive conventionally manufactured patterns and mold tooling.
Manufacture customized and low-volume production parts without dedicated tooling.
Fully enclosed large-format industrial FDM system.
Large cubic build capacity for substantial components.
Linear guide rails support accurate high-speed movement.
Automatic bed compensation simplifies print preparation.
| Printing | |
|---|---|
| Model | MD-600 Pro+ |
| Print Technology | FDM / Fused Deposition Modeling |
| Build Volume | 600 × 600 × 600 mm |
| Extruder | Single High-Temperature Extruder |
| Standard Nozzle | 0.6 mm |
| Optional Nozzles | 0.4 mm / 0.8 mm |
| Filament Capacity | Up to 3 kg per spool |
| Temperature | |
| Maximum Extruder Temperature | ≤350°C |
| Recommended Maximum Extruder Temperature | ≤320°C |
| Maximum Platform Temperature | ≤110°C |
| Performance | |
| Maximum Print Speed | 300 mm/s |
| Recommended PLA Speed | 200 mm/s |
| Recommended PETG Speed | 180 mm/s |
| Recommended PET-CF Speed | 100 mm/s |
| Peak Acceleration | 10,000 mm/s² |
| Materials | |
| Common Materials | PLA, PETG |
| Engineering Materials | PETG-CF, PET-CF/GF, HtPA-CF/GF, PA12-CF, HtPA-GF25/CF25 |
| Control & Software | |
| Firmware | Klipper |
| Input Shaping | Yes |
| Slicing Software | MINGDA Slicer |
| Display | 7-Inch Integrated IPS Touchscreen |
| Printing Method | USB / LAN |
| Wireless Connectivity | Wi-Fi |
| Camera | Integrated |
| Machine Features | |
| Leveling | 25-Point Automatic Leveling |
| Motion System | Precision Linear Guide Rails |
| Build Chamber | Fully Enclosed |
| Filament Chamber | Temperature-Controlled |
| Power-Loss Protection | Built-In UPS / Resume Printing |
| Electrical | |
| Input Voltage | 220 V, 50/60 Hz |
| Rated Power | 1400 W |
Rapid Scan 3D can help evaluate the MD-600 Pro+ for your large-format prototyping, tooling and engineering material applications.
Determine whether the MD-600 Pro+ is the right solution for your part size and production requirements.
Select appropriate PLA, PETG, carbon-fiber and glass-fiber materials for your application.
Integrate large-format additive manufacturing into your engineering and production workflow.
Contact Rapid Scan 3D for MINGDA MD-600 Pro+ pricing, application assistance, material recommendations and purchasing information.
