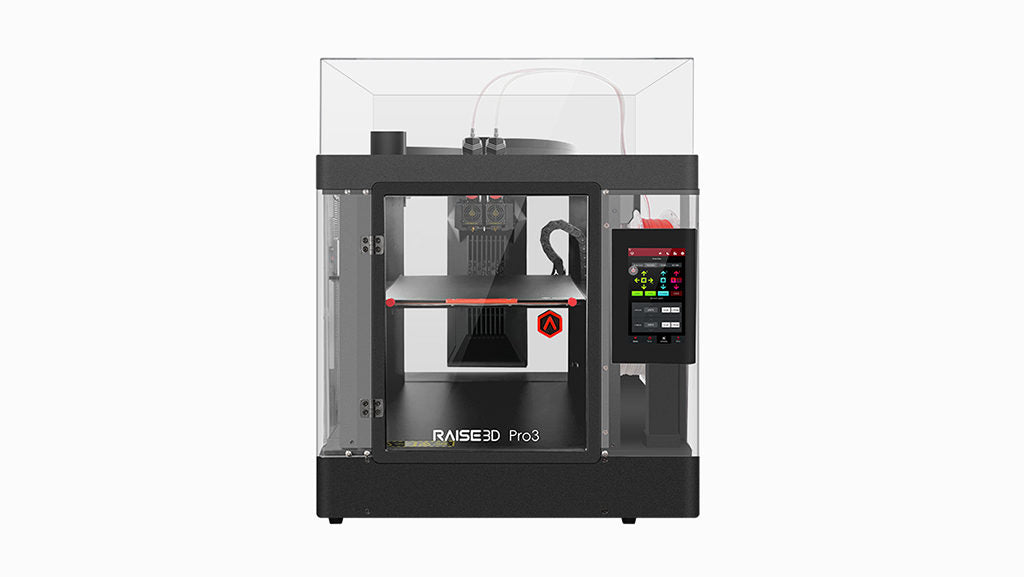

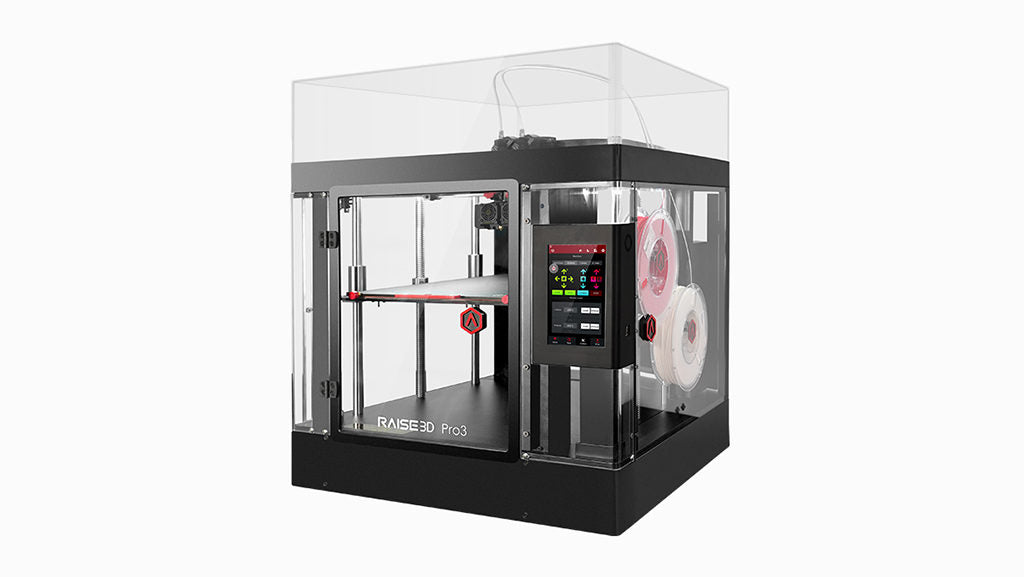

Introducing the Pro3 Series
Agile Production Made Simple
Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation. The Pro3 Series is comprised of the Pro3, with a build volume of 300x300x300mm, and the Pro3 Plus, with a build volume of 300x300x605mm, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.
The Pro3 Series dual extruder 3D printers connect with Raise3D’s 3D printing software ecosystem, that includes a 3D slicing program, ideaMaker, an open-software template called ideaMaker Library, and our cloud-based 3D printing software RaiseCloud.
Pro3: Starting at $5,599.00
Pro3 Plus: Starting at $7,599.00
Enhanced Printing Platform Features
The Pro3 Series features upgraded printing platform features for high-quality printing performance and a better overall experience.
- The auto bed leveling makes setting up a 3D printer quicker and simpler.
- The flexible build plate allows for the effortless removal of 3D printed parts.
- The Z-axis rod stiffness increased by 75% to deliver a more stable performance.
These structural changes enable the Pro3 Series to provide better print results and an easier printing experience.

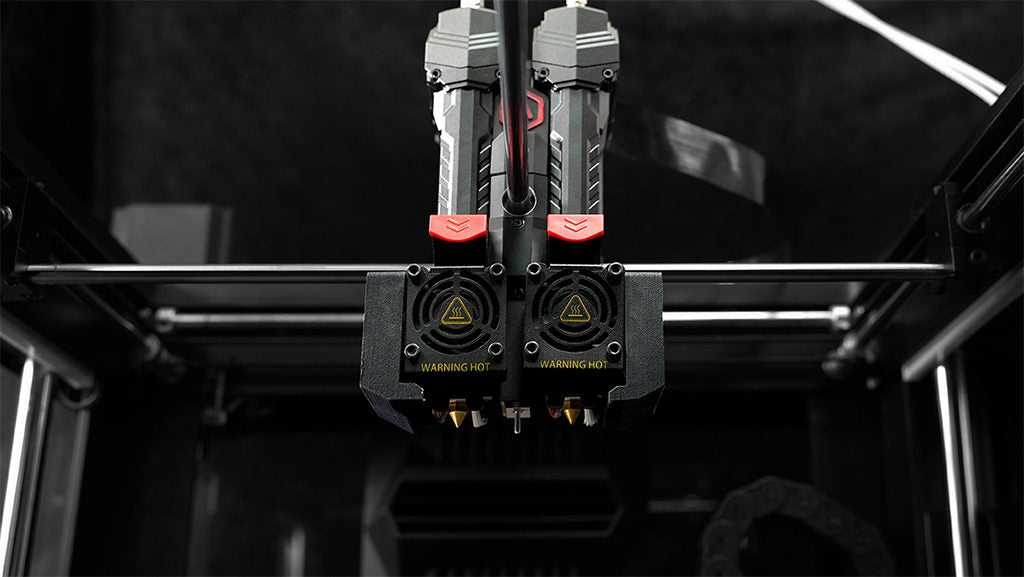

Interchangeable Hot End and Extruder Cover
The Pro3 Series is equipped with an independent modular extruder with a dual extrusion system. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow the convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, which can be done without using tools, making it simple to replace and maintain. Users can also easily take off the front cover of the extruder to accurately locate common printing occurrences such as filament jams.
Air Flow Manager for Better Heat Dissipation
The Air Flow Manager of the Pro3 Series is located on the back of the printer, improving heat dissipation and air circulation, creating a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.

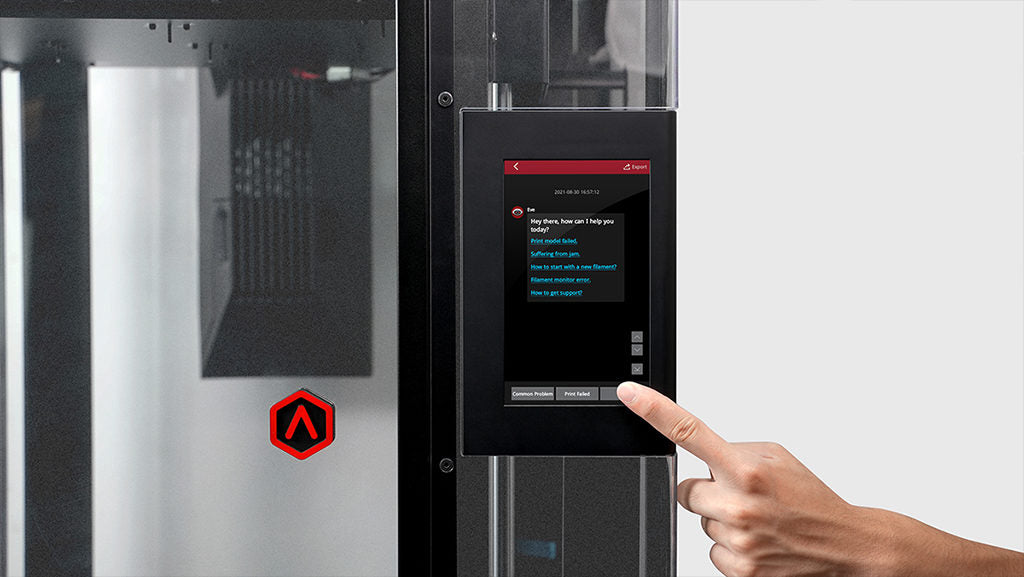

EVE Smart Assistant
The Pro3 Series has a built-in EVE assistant system, preloaded with common printing problems and corresponding solutions. The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job. The EVE assistant has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time. It also helps reduce maintenance time and communication costs for an efficient maintenance process
Professional Dual Extruder 3D Printers
A dual extruder 3D printer can perform more advanced functions such as producing dual color models and dual material models. A professional dual extruder 3D printer will have additional design features resulting in a higher quality print job.
The Pro3 Series professional dual extruder 3D printers have a single-side nozzle lifting technology with fast nozzle switching. Therefore, the nozzles can lift independently and switch within a second, and without being affected by 3D printing material or temperature.
Pro3 Series Technical Specifications
Build Volume (W × D × H)
Single Extruder Print: 11.8 × 11.8 × 11.8 inch/ 300 × 300 × 300 mm
Dual Extruder Print: 10 × 11.8 × 11.8 inch/ 255 × 300 × 300 mm
Single Extruder Print: 11.8 × 11.8 × 23.8 inch/ 300 × 300 × 605 mm
Dual Extruder Print: 10 × 11.8 × 23.8 inch/ 255 × 300 × 605 mm
Machine Size (W × D × H)
24.4 × 24.6 × 29.9 inch/ 620 × 626 × 760 mm
24.4 × 24.6 × 43.5 inch/ 620 × 626 × 1105 mm
Print Head System
Dual-head with electronic lifting system
XYZ Step Size
0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed
Flexible Steel Plate with Buildtak
Max Build Plate Temperature
Heated Bed Material
Build Plate Leveling
Mesh-leveling with Flatness Detection
Filament Run-out Sensor
PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/
Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Max Nozzle Temperature
Wi-Fi, LAN, USB port, Live camera
Noise Emission (Acoustic)
＜55 dB(A) when building
Operating Ambient Temperature
15-30ºC, 10-90% RH non-condensing
-25℃ to +55℃, 10-90% RH non-condensing
HEPA filter with activated charcoal
EVE Smart Assistant
Gross Weight (Carton Only)
Gross Weight (Carton with Pallet)
Power Supply Input
100-240 V AC, 50/ 60 Hz 230 V @ 3.3 A
Power Supply Output
24 V DC, 600 W
Supported File Types
STL/ OBJ/ 3MF/ OLTP
WINDOWS/ macOS/ Linux
Machine Code Type
7-inch Touch Screen
Power Loss Recovery
1024 × 600
Atmel ARM Cortex-M4 120 MHz FPU
NXP ARM Cortex-A9 Quad 1 GHz
USB 2.0 × 2, Ethernet × 1
