Intelligent Wireless Handheld 3D Scanner

SCANOLOGY SIMSCAN-E

Name: Scanology SIMSCAN E
Brand: Rapid Scan 3D
Availability: InStock

Precision in Your Palm

The SCANOLOGY SIMSCAN-E is an intelligent, fully wireless and palm-sized industrial 3D scanner designed for high-accuracy inspection, reverse engineering and dimensional measurement.

Weighing only 600 grams, SIMSCAN-E combines high-performance edge computing, Wi-Fi wireless transmission, industrial cameras and blue-laser technology into an extremely compact handheld system.

Capture up to 6.3 million measurements per second at up to 180 FPS, with accuracy up to 0.020 mm.

Request Pricing Schedule a Demo

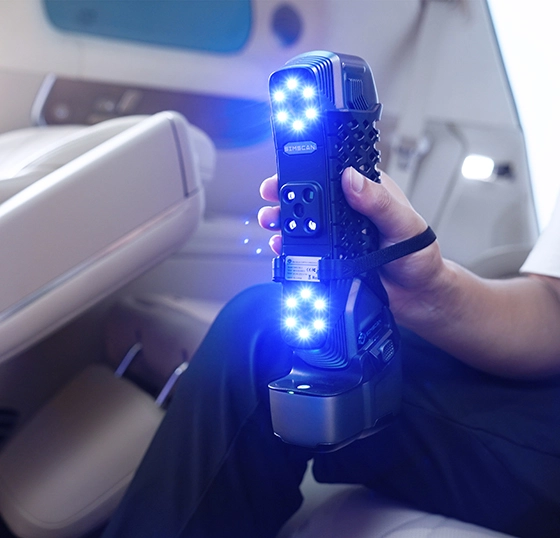

SCANOLOGY SIMSCAN-E wireless palm-sized industrial 3D scanner

6.3M Measurements / Second

0.020 mm Accuracy

180 FPS Scanning Frame Rate

600 g Scanner Weight

Compact Industrial Metrology

Professional Metrology That Fits in Your Hand

SIMSCAN-E combines a compact full-metal housing with intelligent processing and completely wireless operation. Its small size makes it particularly effective around complex parts, vehicle interiors, tooling, machinery and confined spaces where larger scanners can be difficult to maneuver.

Key Features

Compact Size. Industrial Performance.

0.020 mm Accuracy

Metrology-grade dimensional accuracy supports inspection, product development and precision reverse-engineering workflows.

6.3 Million Measurements/Sec

High-speed data acquisition captures dense surface geometry quickly for efficient industrial measurement.

Only 600 Grams

Its compact 203 × 80 × 44 mm body allows comfortable one-handed scanning for extended measurement sessions.

Fully Wireless

Integrated batteries, edge computing and wireless data transfer eliminate restrictive scanner cables.

700 × 600 mm Scan Area

A large scanning field allows SIMSCAN-E to capture more surface geometry with each pass.

180 FPS

High-speed frame acquisition provides smooth tracking and efficient scanning over complex geometry.

SCANOLOGY SIMSCAN-E scanning an industrial metal component

Compact & Wireless

Designed for True One-Handed Scanning

SIMSCAN-E measures approximately 203 × 80 × 44 mm and weighs just 600 g.

The compact full-metal construction is designed for practical use in manufacturing plants, workshops, customer facilities and field inspection environments.

With no restrictive data cable, operators can easily move around vehicles, machinery, molds and complex assemblies.

600 g Wireless Full-Metal Body One-Hand Operation

Multiple Scanning Modes

Scan Fast, Capture Detail and Reach Deep Features

SIMSCAN-E provides three blue-laser scanning modes so users can optimize the scanner for speed, detailed geometry or difficult recessed areas.

63 Blue Laser Lines

Ultra-Fast Scanning

Triple Cross Technology rapidly captures overall part geometry for high-efficiency inspection and reverse engineering.

17 Parallel Laser Lines

Hyperfine Scanning

Capture detailed surfaces, edges and complex geometry when increased detail is required.

1 Blue Laser Line

Deep-Hole Scanning

A dedicated laser line helps capture holes, slots, channels and other recessed or difficult-to-access features.

Excellent for Confined Spaces

Get Into Areas Larger Scanners Can't Easily Reach

SIMSCAN-E uses a short-distance camera configuration and steep viewing angle to improve access to hidden geometry.

This makes it especially useful for:

Deep holes
Narrow slots
Channels and grooves
Vehicle interiors
Machined components
Tooling and molds
Recessed industrial geometry

More complete data means fewer missing areas and less time spent rescanning complex parts.

SIMSCAN-E wireless scanner used in a compact automotive environment

Wireless SCANOLOGY SIMSCAN-E handheld 3D scanner

Wireless Freedom

Scan Without Being Tethered to Your Computer

SIMSCAN-E incorporates advanced edge computing and wireless data transmission directly into the scanner.

This allows users to move freely around components and reduces the cable-management issues often associated with traditional handheld metrology scanners.

Wi-Fi wireless communication
Integrated edge computing
Battery-powered scanning
Wireless or wired operation
Suitable for field measurement
Ideal around vehicles and machinery

Continuous Scanning

Hot-Swappable Dual Battery Design

SIMSCAN-E uses dual batteries designed for hot swapping, allowing users to replace a battery while continuing the scanning workflow.

This is particularly valuable for production environments, long inspection sessions and on-site projects where minimizing downtime is important.

SCANOLOGY SIMSCAN-E with wireless battery base

Metrology Performance

High-Accuracy Industrial 3D Measurement

SIMSCAN-E combines industrial cameras, sophisticated image processing and sub-pixel feature extraction to support precision dimensional measurement throughout product development and inspection workflows.

0.020 mm Accuracy

0.020 mm Maximum Resolution

0.015 + 0.035 mm/m Volumetric Accuracy

300 mm Stand-Off Distance

DefinSight Software

Powered by SCANOLOGY DefinSight

SIMSCAN-E operates with SCANOLOGY's DefinSight software platform, which combines modern scanning algorithms with an intuitive interface for efficient point-cloud capture and professional 3D scanning workflows.

Smart Guide

Guidance tools help operators improve scan coverage and simplify the data-acquisition process.

Real-Time Meshing

Visualize reconstructed geometry during scanning to help identify areas requiring additional data.

Magic Button Control

Scanner controls are designed to keep common workflow functions conveniently accessible during measurement.

Applications

SIMSCAN-E Applications

Quality Inspection

Compare manufactured components against CAD and analyze dimensional deviations.

Reverse Engineering

Digitize existing parts for CAD reconstruction and engineering documentation.

Automotive

Scan interiors, components, body panels, dies, aftermarket parts and prototypes.

Aerospace

Measure precision parts, tooling and complex aerospace geometry.

Molds & Tooling

Inspect molds, dies, fixtures and tooling against nominal geometry.

Manufacturing

Support first-article inspection, incoming inspection and production verification.

Heavy Industry

Digitize machinery and fabricated components directly in the field or production environment.

Rail & Marine

Capture parts and structures for inspection, maintenance and reverse engineering.

Technical Specifications

SCANOLOGY SIMSCAN-E Specifications

Specification	SIMSCAN-E
Scanner Type	Wireless palm-sized industrial 3D scanner
Ultra-Fast Scanning	63 blue laser lines — Triple Cross Technology
Hyperfine Scanning	17 parallel blue laser lines
Deep-Hole Scanning	1 additional blue laser line
Total Laser Lines	81 blue laser lines
Accuracy	Up to 0.020 mm
Maximum Resolution	0.020 mm
Maximum Measurement Rate	6,300,000 measurements/second
Scanning Frame Rate	Up to 180 FPS
Scanning Area	Up to 700 × 600 mm
Standard Volumetric Accuracy	0.015 mm + 0.035 mm/m
Volumetric Accuracy with MSCAN-L15	0.015 mm + 0.012 mm/m
Stand-Off Distance	300 mm
Depth of Field	550 mm
Laser Class	Class II — eye-safe
Dimensions	203 × 80 × 44 mm
Weight	600 g
Wireless	Wi-Fi 6 / 802.11 a/b/g/n/ac
Interface	USB3-B
Operating Temperature	-10°C to 40°C / 14°F to 104°F
Output Formats	STL, OBJ, PLY, ASC, IGS, TXT, MK2, UMK and additional formats
Software	SCANOLOGY DefinSight

Specifications are based on current manufacturer information and may change without notice. Contact Rapid Scan 3D to confirm current specifications and recommended configuration.

Rapid Scan 3D

Why Buy SIMSCAN-E From Rapid Scan 3D?

Rapid Scan 3D provides professional 3D scanning, metrology, reverse-engineering and inspection solutions for manufacturers, automotive, aerospace, defense and engineering organizations.

Application Consultation

We'll review your part sizes, tolerances, surfaces and workflow to help determine the right 3D scanning solution.

Live Demonstrations

Schedule a SIMSCAN-E demonstration or send us a sample part to evaluate the scanner on your application.

Training & Support

Rapid Scan 3D can assist with scanner training, implementation, reverse engineering, inspection and software workflows.

Frequently Asked Questions

SIMSCAN-E FAQ

What is the SCANOLOGY SIMSCAN-E?

SIMSCAN-E is a wireless palm-sized industrial 3D scanner designed for precision measurement, inspection, reverse engineering and product development.

How accurate is SIMSCAN-E?

SIMSCAN-E provides measurement accuracy up to 0.020 mm under the manufacturer's specified testing conditions.

How fast is SIMSCAN-E?

SIMSCAN-E can capture up to 6.3 million measurements per second with frame rates up to 180 FPS.

Is SIMSCAN-E wireless?

Yes. SIMSCAN-E incorporates wireless communication, onboard processing and battery power for cable-free scanning.

How much does SIMSCAN-E weigh?

SIMSCAN-E weighs approximately 600 grams and measures 203 × 80 × 44 mm.

Can SIMSCAN-E scan deep holes?

Yes. SIMSCAN-E has a dedicated single blue laser line designed for deep holes, channels and recessed features.

Can SIMSCAN-E be used for reverse engineering?

Yes. SIMSCAN-E scan data can be used with professional reverse engineering software to recreate CAD models from physical components.

Can SIMSCAN-E be used for quality inspection?

Yes. Its metrology-grade accuracy makes it suitable for dimensional inspection, CAD comparison and deviation analysis.

How do I get SIMSCAN-E pricing?

Contact Rapid Scan 3D for current pricing, system packages, demonstrations, training and software options.

See the SIMSCAN-E in Action

Tell us what you need to scan, your approximate part size and accuracy requirements. Rapid Scan 3D can help determine whether SIMSCAN-E is the right system for your application.

Request a Quote Schedule a Demo

Rapid Scan 3D
562-912-3544 | info@rapidscan3d.com

NimbleTrack-C
Ultra-fast scanning	17 blue laser crosses
Hyperfine scanning	7 blue parallel laser lines
Deep hole scanning	1 blue laser line
Accuracy for i-Scanner(1)	Up to 0.020 mm (0.0008 in)
Accuracy for i-Tracker(1)	Up to 0.025 mm (0.0009 in)
Tracking distance per i-Tracker	3200 mm (126.0 in)
Volumetric accuracy(2) Tracking Distance 3.2m	0.064 mm (0.0025 in)
Volumetric Accuracy )with MSCAN photogrammetry System	0.044 mm + 0.012 mm/m (0.0017 in + 0.00014 in/ft)
Hole position accuracy	0.050 mm (0.0020 in)
Laser class	Class II (eye-safe)
Resolution up to	0.020 mm (0.0008 in)
Stand-off distance	300 mm (11.8 in)
Depth of field	400 mm (15.7 in)
Scanning area up to	500 mm × 600 mm (19.7 in × 23.6 in)
Measurement rate up to	4,900,000 measurements/s
Scanning frame rate	120 fps
Weight of i-Scanner	2.87 lbs
Output format	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
