Scantech MSCAN L15

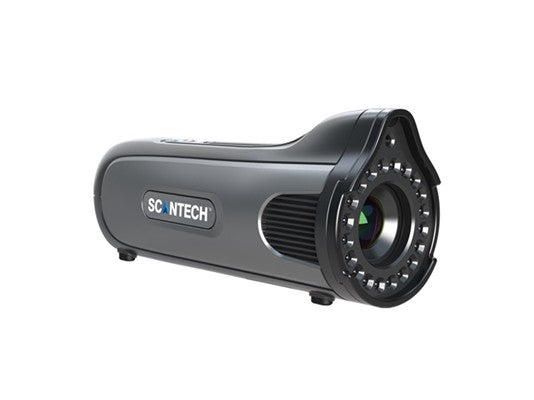

MSCAN-L15 Photogrammetry System

MSCAN-L15 photogrammetry system is tailored to deliver high-precision geometric measurements of large-scale workpieces. With a large shooting area and wide depth of field, MSCAN-L15 performs volumetric accuracy of 0.015 mm/m for large-scale projects and parts from 2 m to 10 m.

Compatible with 3D inspection devices, MSCAN-L15 can fulfill stricter measurement accuracy requirements. Unique HDR mode makes strong environment adaptability. Due to the ergonomic design, it creates great portability and can be held for a long time.

MSCAN-L15 ensures precise, efficient and easy-to-use 3D solutions for large-scale projects in 3D inspection, product development, quality control, etc.


Unique HDR Mode

Support HDR mode, strong environment adaptability, blue LED light reaches higher inspection accuracy.

Deformation Detection

Obtain precise 3D data of the deformed workpieces and generate intuitive deviation values.


Users can inspect key positions (such as cylindrical axial distance and hole center) of the parts by using different adaptors.

Technical Specifications
Type MSCAN-L15
Volumetric accuracy 0.012 mm/m
Volumetric accuracy (work with 3D scanners) KSCAN 0.015 mm/m + 0.012 mm/m
Volumetric accuracy (work with 3D scanners) SIMSCAN 0.015 mm + 0.012 mm/m
Volumetric accuracy (work with 3D scanners) AXE 0.020 mm + 0.012 mm/m
Volumetric accuracy (work with 3D scanners) TrackScan-P 0.044 mm + 0.012 mm/m
Device type Industrial camera and lens (not DSLR)
Weight ?0.58 KG
Obtain mark point position Real-time calculate & display
Interface mode Gigabit Lan
Depth of field 6.5 m
Shooting area Up to 9.4 m x 6.9 m
Operating temperature range -10?–40?
