Intelligent Wireless Metrology 3D Scanner

SCANOLOGY NimbleTrack-CR 3D Scanning System

Name: NimbleTrack-CR
Brand: Rapid Scan 3D
Availability: InStock

Precision in Detail. Limitless in Measurement.

The NimbleTrack-CR is an intelligent, fully wireless optical 3D scanning system engineered for high-detail industrial measurement, quality inspection, reverse engineering, research, cultural heritage digitization, and precision manufacturing.

Combining a lightweight wireless scanner, optical tracking, high-performance industrial cameras, advanced cross-laser technology, and intelligent processing algorithms, NimbleTrack-CR delivers highly detailed measurement without attaching traditional positioning markers to the object.

Request Pricing Schedule a Demonstration

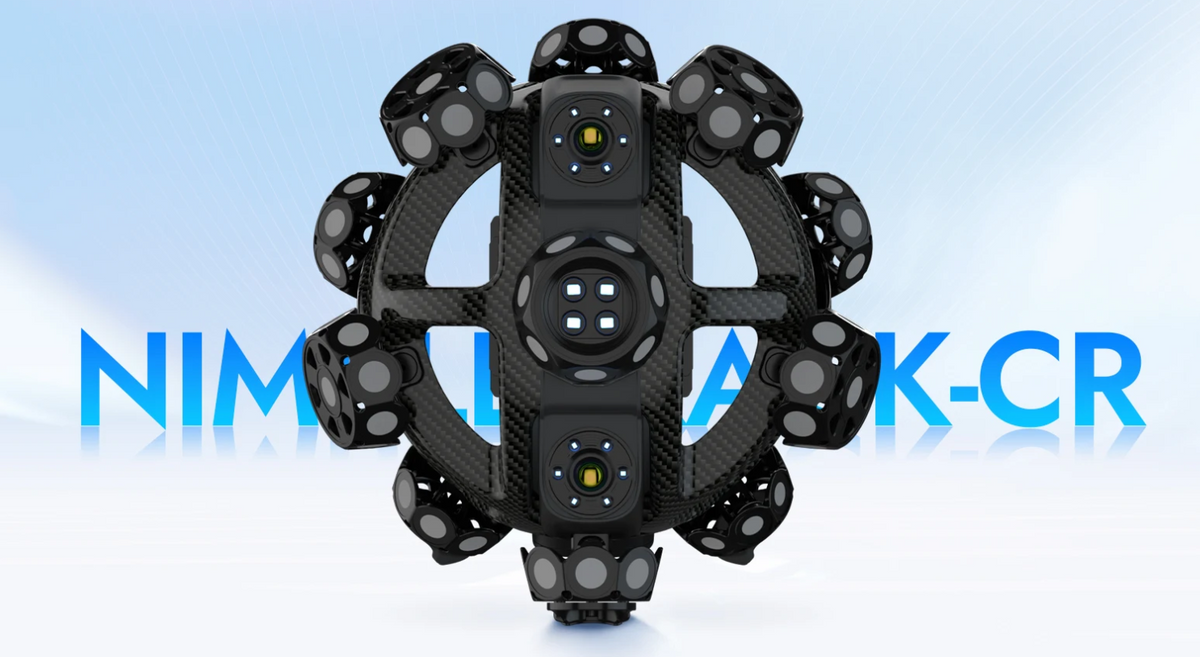

SCANOLOGY NimbleTrack-CR wireless metrology 3D scanner

0.020 mm Scanner-Only Accuracy

0.025 mm System Accuracy

0.010 mm Maximum Resolution

4.9M Measurements Per Second

Portable Metrology

High-Detail 3D Measurement Without the Cables

NimbleTrack-CR builds on SCANOLOGY's optical tracking technology with a focus on capturing extremely fine geometry. Its compact wireless design gives engineers and metrology professionals greater freedom when measuring complex components in the inspection room, on the production floor, or in the field.

Key Features

Engineered for Detailed Industrial Measurement

0.020 mm Scanner Accuracy

Scanner-only operation provides accuracy up to 0.020 mm for precision dimensional measurement and detailed reverse engineering.

0.025 mm System Accuracy

Optical tracking enables system accuracy up to 0.025 mm for demanding metrology and quality-control applications.

10-Micron Resolution

Capture fine surface features, sharp edges, intricate geometry, defects, tooling details, and complex contours with resolution up to 0.010 mm.

Completely Wireless Measurement

Built-in batteries, wireless networking, and onboard processing eliminate restrictive cables for increased scanning freedom.

4.9 Million Measurements/Second

High-speed data acquisition allows users to capture dense 3D data quickly while maintaining measurement detail.

Target-Free Optical Tracking

The i-Tracker continuously tracks the scanner, minimizing the need to place traditional positioning targets directly on the component.

NimbleTrack-CR lightweight portable wireless 3D scanner

Compact & Portable

Only 1.3 kg

With a scanner body measuring approximately 238 × 203 × 230 mm and weighing only 1.3 kg, NimbleTrack-CR is designed for comfortable handheld operation.

The complete scanning system can be transported in a protective case, making it an excellent choice for on-site inspections, manufacturing environments, aerospace applications, field measurement, and mobile metrology teams.

Industrial Metrology

Precision Measurement for Complex Parts

NimbleTrack-CR is designed for small and medium-sized industrial components where fine details, complex surfaces, edges, holes, contours, and dimensional accuracy matter.

Typical uses include dimensional inspection, CAD comparison, reverse engineering, tooling validation, manufacturing analysis, turbine blades, precision machined components, castings, molds, aerospace components, automotive parts, and production tooling.

ISO 17025 accredited accuracy testing
Up to 0.025 mm system accuracy
Up to 0.020 mm scanner-only accuracy
High-resolution detailed geometry capture
Non-contact dimensional measurement

NimbleTrack-CR industrial metrology and inspection

Multiple Scanning Modes

One Scanner for Different Measurement Challenges

Switch between scanning configurations based on whether your priority is speed, very fine detail, or difficult recessed geometry.

17 Blue Laser Crosses

Ultra-Fast Scanning

Rapidly capture general geometry and larger surface areas for efficient industrial inspection and reverse engineering.

7 Parallel Blue Lasers

Hyper-Fine Scanning

Capture intricate geometry and small features requiring higher detail and dense surface information.

1 Blue Laser Line

Deep-Hole Scanning

Improve measurement access to holes, channels, recessed areas, narrow features, and difficult geometry.

Flexible Measurement

Built for More Than the Inspection Lab

NimbleTrack-CR can operate across different materials, environments, and measurement conditions, making it suitable for both controlled metrology environments and on-site data capture.

NimbleTrack-CR multiple scanning applications

Wireless NimbleTrack-CR scanner and optical tracker

Wireless Measurement

Freedom to Move Around the Part

Both the scanner and optical tracker incorporate wireless capabilities and battery power, allowing operators to move around components without managing conventional scanner cables.

Integrated edge computing supports stable data processing while Wi-Fi 6 connectivity provides fast wireless communication between system components.

Onboard computing
Built-in batteries
Wi-Fi 6 wireless communication
Wireless scanner operation
Wireless tracker operation
Wireless multi-tracker configurations

Intelligent Scanning

Software-Powered Measurement

Smart Resolution

Automatically adapt scanning resolution to object geometry and the measurement environment before scanning.

Real-Time Color Indicators

Visually identify scanned and unscanned regions to reduce missing areas and improve scan completeness.

Real-Time Multi-Resolution

Adjust resolution while scanning to capture additional detail only where it is needed.

Expand Your Measurement Capabilities

Probing, Edge Inspection & Multi-Tracker Measurement

Intelligent Edge Detection

Optional gray-value edge measurement can help measure holes, slots, boundaries, and other closed features.

i-Probe

Add contact probing to measure reference holes, hidden points, inaccessible geometry, and features that are difficult to capture optically.

Multi-Tracker Measurement

Extend the measurement volume using additional optical trackers for larger components and assemblies while maintaining tracked measurement.

Applications

What Can You Use NimbleTrack-CR For?

Quality Inspection

Compare manufactured components against CAD models and evaluate dimensional deviations.

Reverse Engineering

Capture existing components and convert accurate scan data into editable CAD geometry.

Aerospace

Measure turbine blades, precision components, tooling, structures, and complex manufactured parts.

Automotive

Scan components, molds, castings, aftermarket parts, tooling, prototypes, and assemblies.

Tool & Die

Inspect molds, dies, jigs, fixtures, tooling surfaces, and production equipment.

Manufacturing

Support production inspection, first article inspection, process optimization, and engineering analysis.

Research & Education

Capture accurate digital models for engineering research, laboratories, universities, and technical education.

Cultural Heritage

Digitize artifacts, sculptures, ceramics, artwork, and historical objects using non-contact measurement.

Technical Specifications

SCANOLOGY NimbleTrack-CR Specifications

Scanner Type	Wireless optical tracking metrology 3D scanning system
Ultra-Fast Scanning	17 blue laser crosses
Hyper-Fine Scanning	7 blue parallel laser lines
Deep-Hole Scanning	1 blue laser line
Scanner-Only Accuracy	Up to 0.020 mm
System Accuracy	Up to 0.025 mm
Tracking Distance per i-Tracker	Up to 3200 mm / 126 in
Volumetric Accuracy at 3.2 m	0.064 mm
Volumetric Accuracy with MSCAN Photogrammetry	0.044 mm + 0.012 mm/m
Hole Position Accuracy	0.050 mm
Maximum Resolution	0.010 mm
Measurement Rate	Up to 4,900,000 measurements/second
Scanning Frame Rate	120 FPS
Stand-Off Distance	250 mm
Depth of Field	300 mm
Scanning Area	Up to 150 × 190 mm
Laser Class	Class II, eye-safe
Scanner Dimensions	238 × 203 × 230 mm
Scanner Weight	1.3 kg net / 1.4 kg with battery and wireless module
i-Tracker Dimensions	570 × 87 × 94 mm
i-Tracker Weight	2.2 kg net / 2.6 kg with battery and wireless module
Wireless Standard	Wi-Fi 6 / 802.11 a/b/g/n/ac/ax
Interface	USB 3.0 and Gigabit Ethernet
Operating Temperature	-10°C to 40°C / 14°F to 104°F
Operating Humidity	10–90% RH, non-condensing
Output Formats	STL, OBJ, PLY, ASC, IGS, TXT, MK2 and additional formats

Specifications are based on current manufacturer information and may change without notice. Contact Rapid Scan 3D for current system configuration and specifications.

Rapid Scan 3D

Why Buy NimbleTrack-CR From Rapid Scan 3D?

Rapid Scan 3D helps companies select, implement, and support professional 3D scanning and metrology systems for inspection, reverse engineering, product development, manufacturing, aerospace, automotive, defense, and research applications.

Application Consultation

We evaluate your part sizes, tolerances, surface conditions, inspection requirements, workflow, and final deliverables before recommending a system.

Live Demonstrations

Schedule a NimbleTrack-CR demonstration or send Rapid Scan 3D a sample part so you can evaluate real scan results.

Training & Support

Get assistance with scanning workflows, inspection, reverse engineering, software integration, implementation, and ongoing technical support.

Frequently Asked Questions

NimbleTrack-CR FAQ

What is the SCANOLOGY NimbleTrack-CR?

NimbleTrack-CR is a wireless optical tracking 3D scanning system designed for high-detail dimensional measurement, industrial inspection, reverse engineering, research, and digital preservation.

How accurate is the NimbleTrack-CR?

Scanner-only accuracy is rated up to 0.020 mm, while system accuracy when used with the optical tracking system is rated up to 0.025 mm.

What resolution can NimbleTrack-CR achieve?

The system provides resolution up to 0.010 mm, making it suitable for capturing very fine geometry and detailed surface features.

Does NimbleTrack-CR require targets on the part?

When operating with the i-Tracker, the scanner can be optically tracked without placing conventional positioning targets directly over the measurement surface in many workflows.

Is NimbleTrack-CR wireless?

Yes. The scanner and tracker support battery-powered wireless operation, providing greater freedom when moving around components.

Can NimbleTrack-CR scan deep holes?

Yes. A dedicated single blue laser line is provided for deep-hole and recessed-feature scanning.

Can NimbleTrack-CR be used for quality inspection?

Yes. Its metrology accuracy, optical tracking, fine resolution, and high measurement rate make it suitable for dimensional inspection, CAD comparison, deviation analysis, and manufacturing quality workflows.

Can NimbleTrack-CR be used for reverse engineering?

Yes. Scan data can be used with professional reverse-engineering software to recreate CAD models of legacy parts, tooling, prototypes, components, and manufactured products.

How do I get NimbleTrack-CR pricing?

Contact Rapid Scan 3D for current NimbleTrack-CR pricing, available configurations, demonstrations, training, accessories, software, and application recommendations.

Request NimbleTrack-CR Pricing or a Live Demonstration

Tell our team what you need to scan, your approximate part size, tolerances, surface type, inspection requirements, and desired deliverable. Rapid Scan 3D can help determine whether NimbleTrack-CR is the right system for your application.

Get a NimbleTrack-CR Quote Schedule a Demo

Rapid Scan 3D | 562-912-3544 | info@rapidscan3d.com

NimbleTrack-CR	Technical Specifications
Type		NimbleTrack-CR	KSCAN-MagicⅡ
Scan mode	Ultra-fast scanning Hyperfine scanning Deep hole scanning	17 blue laser crosses 7 blue parallel laser lines 1 blue laser line
Accuracy for scanner-only mode(1)		Up to 0.020 mm (0.0008 in)
Accuracy for system(1)		Up to 0.025 mm (0.0009 in)
Tracking distance per i-Tracker		3200 mm (126.0 in)
Volumetric accuracy(2) (Tracking distance 3.2 m)		0.064 mm (0.0025 in)
Volumetric accuracy (With MSCAN photogrammetry system )		0.044 mm + 0.012 mm/m (0.0017 in + 0.00014 in/ft)	4,150,000 measurements/s
Hole position accuracy		0.050 mm (0.0020 in)
Laser class		Class II (eye-safe)
Resolution up to		0.020 mm (0.0008 in)
Stand-off distance		300 mm (11.8 in)
Depth of field		400 mm (15.7 in)
Scanning area up to		500 mm × 600 mm (19.7 in × 23.6 in)
Scanning frame rate		120 fps
Measurement rate up to		4,900,000 measurements/s
Dimension of i-Scanner		238 mm × 203 mm × 230 mm (9.4 in × 8.0 in × 9.1 in)
Weight of i-Scanner		1.3 kg (Net weight) (2.87 lb) 1.4 kg (Battery and wireless module included) (3.09 lb)
Dimension of i-Tracker		570 mm × 87 mm × 94 mm (22.4 in x 3.4 in x 3.7 in)
Weight of i-Tracker		2.2 kg (Net weight) (4.85 lb) 2.6 kg (Battery and wireless module included) (5.73 lb)
Size of protection case		1000 mm × 425 mm × 280 mm (39.4 in × 16.7 in × 11.0 in)
Output format		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10°C–40°C (14℉-104℉)
Operating humidity (Non-condensation)		10-90% RH
Wireless operating mode		i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, Wireless multi-tracker tacking, Edge Inspection
Wireless standard		802.11a/n/ac
Interface mode		USB 3.0, Network Interface
