Import scan data from any scanner into QUICKSURFACE Lite saved as STL, OBJ, or PLY mesh files. For long-range scanners, the data can be imported using the PTX file format. QUICKSURFACE allows the user to load any size mesh.
Annual Subscription

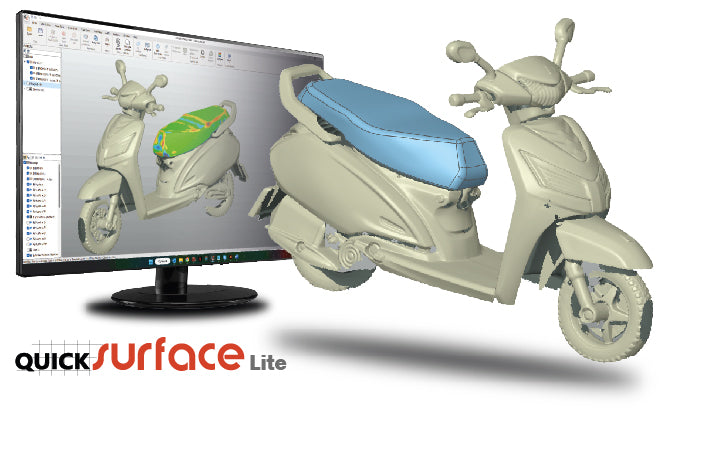

QUICKSURFACE Lite is a simplified version of QUICKSURFACE Pro. It provides simple yet powerful tools to help customers to extract the most essential information needed to create CAD from scan data and transfer them to user’s preferred CAD package. The software is compatible with any 3D scanner exporting STL, OBJ, or PLY meshes. Your high-quality models can be exported in standard IGES or STEP file formats to other CAD/CAM packages.
Explore the key features.
Import scan data from any scanner into QUICKSURFACE Lite saved as STL, OBJ, or PLY mesh files. For long-range scanners, the data can be imported using the PTX file format. QUICKSURFACE allows the user to load any size mesh.
Simple-to-use mesh editing tools of QUICKSURFACE allow easily to reduce the size of the data without lose of accuracy, fill holes and remove mesh outliers. Create watertight mesh for 3D printing or for reverse engineering.
With QUICKSURFACE Lite you can remove stamps, markers or other features. Simply select and ‘de-feature’ with a single button click.
Quickly reconstruct planes, cylinders, cones, and spheres. Additionally, create reference geometries like lines and points for use in aligning meshes to the world coordinate system or to other scans.
Define the symmetry plane and use the analyser to identify the quality of the position of the plane. Fine tune the position with on-screen controls to achieve the best results.
Select the area of interest and let the software approximate the selection with a free-form surface. The resulting surface is extended to make it suitable for trimming. The real-time deviation colour map instantly displays the quality of the surface.
Position the object into the world coordinate system using the extracted primitives. The interactive definition of the coordinate system allows the user to adjust the correct orientation of the object.
Align multiple scan data to each other or scan data to imported CAD model. Simply pick 3 or more corresponding points and get the objects aligned.
Optimise two or more overlapping scans of the same object. The smart global fine align allows the user to create complete scan from scans of the same object from different sides.
Interactive sectioning allows the user to extract reference points for 2D Sketching. Align the section plane to the extracted primitives, CAD faces or even create sections interactively on the screen. For the purposes of lofting – the user can also create multiple sections at once.
Draw free form curves directly on the reference mesh. Create blend curves and prepare for further use with fill surface, free form from 3D sketch or any other CAD surfacing operation.
Quickly create surfaces on organic shapes with just the click of a button. No user interaction is required. The surface quality is G2 everywhere and G1 at extraordinary points.
Manage the precision of your reconstruction using the efficient distance colour map. Compare the CAD model with the reference mesh at any stage of your process.
QUICKSURFACE Lite can export your high-quality models in standard IGES or STEP file formats to other CAD/CAM packages for completing the full CAD creation.
QUICKSURFACE Lite is a simplified version of QUICKSURFACE Pro. It provides simple yet powerful tools to help customers to extract the most essential information needed to create CAD from scan data and transfer them to user’s preferred CAD package. The software is compatible with any 3D scanner exporting STL, OBJ, or PLY meshes. Your high-quality models can be exported in standard IGES or STEP file formats to other CAD/CAM packages.
This QUICKSURFACE Pro product is a professional, complete solution for 3D Reverse Engineering. The software is compatible with any 3D scanner exporting STL, OBJ, or PLY meshes or PTX point clouds. It provides simple yet powerful tools for converting your digitized data into ready-to-use models. You can use it for both free-form modelling and parametric modelling. Additionally, automatic surfacing is available. Your high-quality models can be exported in standard IGES or STEP file formats to other CAD/CAM packages, or you can use them for 3D printing or CNC machining.
