Massive 1.2-meter industrial 3D printing with dual 500°C extrusion, an actively heated chamber and engineering-material capability for full-scale manufacturing applications.
REQUEST A QUOTE VIEW SPECIFICATIONS

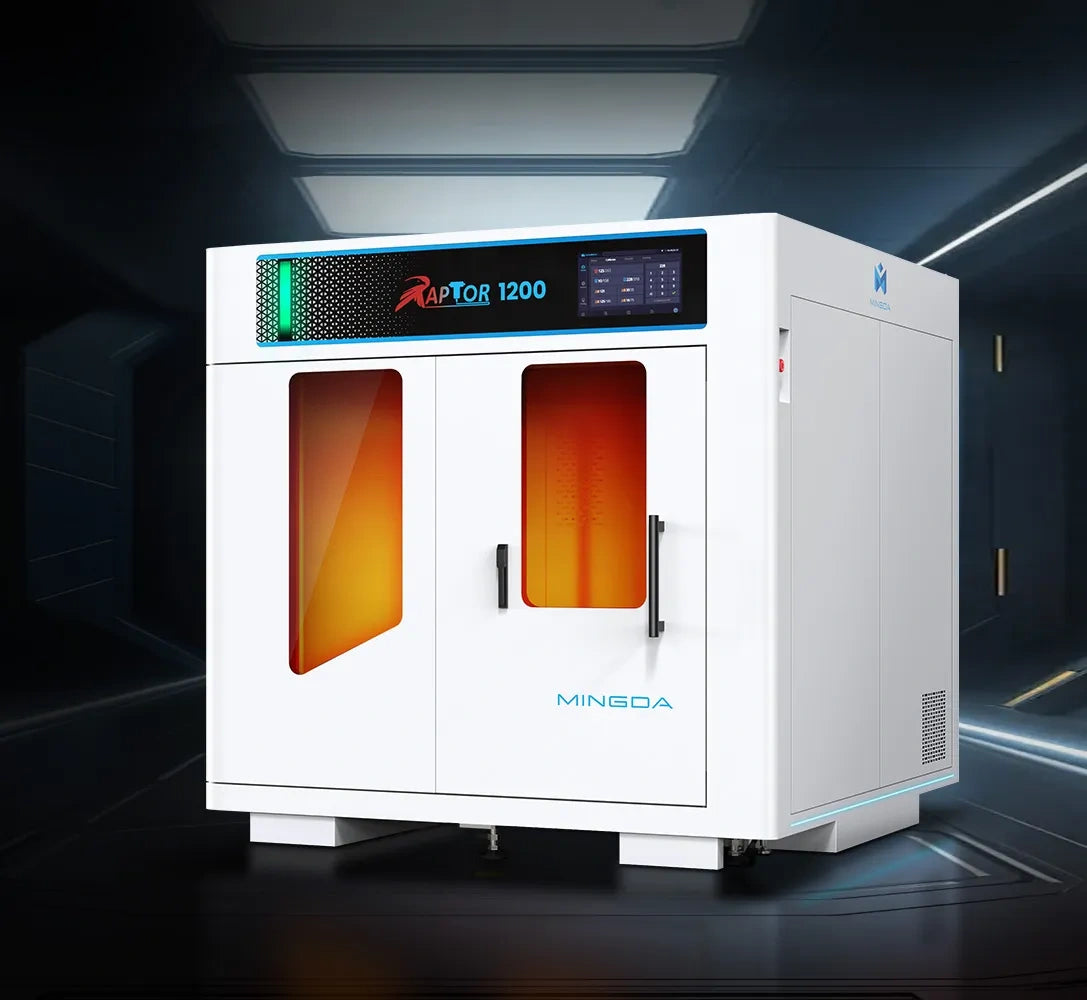

The MINGDA Raptor 1200 is an industrial large-format FDM 3D printer engineered for extremely large functional parts, tooling, prototypes and production applications.
Its massive 1200 × 1200 × 1200 mm build volume is combined with dual 500°C high-temperature extruders, an 80°C actively heated chamber and a 110°C heated bed for demanding engineering thermoplastics and fiber-reinforced materials.
Manufacture oversized parts in one piece without unnecessary sectioning, bonding or assembly.
Dual lifting print heads support engineering thermoplastics and reinforced composite materials.
A controlled thermal environment helps reduce warping and cracking on large engineering parts.
The 1200 × 1200 × 1200 mm build envelope provides more than 1.7 cubic meters of printing capacity.
That scale makes it possible to manufacture components that would require extensive assembly on smaller-format systems.
The heated chamber and insulated bellows help maintain stable thermal conditions throughout long large-format print jobs.
As component size increases, temperature consistency becomes increasingly important. The Raptor 1200 maintains elevated chamber temperatures to reduce differential cooling across large prints.
Dual lifting extruders allow the Raptor 1200 to process demanding industrial materials and support multi-material printing.
Designed for ABS, ASA, nylon, PPS, PC and fiber-reinforced materials.
Large-format engineering-material printing requires coordinated control of nozzle, bed, chamber and filament temperatures.
High-temperature extrusion for advanced polymers.
Controlled thermal environment for large parts.
Improved first-layer adhesion and stability.
Heated storage for moisture-sensitive materials.
The heated build platform provides the foundation needed for large engineering-material parts.
Strong first-layer adhesion is especially important when printing parts with extremely large footprints.
The Raptor 1200 is designed around industrial thermoplastics and reinforced materials for functional production applications.
Large prints can require significant machine time. The Raptor 1200 uses industrial motion hardware and Klipper-based control to help improve throughput.
Extra-large industrial prints can operate for many days. Integrated AI monitoring adds another layer of oversight for unattended jobs.
Early warning of common print failures can help reduce wasted filament and protect days of machine time on extremely large components.
The Raptor 1200 uses water cooling for the extruder and heat-break system to manage high thermal loads during elevated-temperature production.
Remote air supply provides controlled part cooling while reducing unnecessary moving mass on the extrusion carriage.
The fully enclosed chassis incorporates HEPA filtration for professional manufacturing environments.
Camera-assisted calibration helps establish accurate offsets between the dual nozzles.
Automatic probe calibration simplifies Z-offset adjustment.
Automated leveling improves setup speed and first-layer consistency.
Printing automatically pauses when filament interruption is detected.
Interrupted jobs can resume after power is restored.
Door-open monitoring is integrated into the industrial machine platform.
MINGDA's self-developed computing platform provides responsive controls, smooth operation and improved system stability.
The Raptor 1200 is designed for organizations that need full-scale, durable and functional components without traditional tooling.
Large lightweight structures, tooling and on-demand components.
Full-scale prototypes, large custom components and manufacturing tools.
Jigs, fixtures, robotic tooling and production-line components.
Large molds, patterns and full-scale functional prototypes.
Large replacement components, tooling and maintenance parts.
Durable large-scale parts and specialized functional components.
Fully enclosed large-format industrial printing platform.
Full 1200 × 1200 × 1200 mm manufacturing capacity.
Heated chamber, dual extrusion, high-temperature hot end and large volume.
Aerospace, automotive, heavy industry, automation and marine applications.
| Printing | |
|---|---|
| Model | Raptor 1200 |
| Technology | FDM / Fused Deposition Modeling |
| Build Volume | 1200 × 1200 × 1200 mm |
| Printing Nozzles | 2 |
| Extruder Type | Dual Lifting Head |
| Standard Nozzle | 0.6 mm |
| Optional Nozzles | 0.4 mm / 0.8 mm |
| Layer Height | 0.24 - 0.36 mm with standard nozzle |
| Filament Diameter | 1.75 mm |
| Print File | G-code |
| Temperature | |
| Maximum Nozzle Temperature | 500°C |
| Maximum Bed Temperature | 110°C |
| Maximum Chamber Temperature | 80°C |
| Spool Box Drying | Up to 50°C |
| Performance | |
| Maximum Print Speed | 300 mm/s |
| Input Shaping | Yes |
| Materials | |
| Compatible Filaments | ABS, ASA, PA, PA12-CF, PA6-CF, PPS, PPS-CF, PPS-GF, PC, PC-CF, PET-CF, PET-GF and other compatible engineering materials |
| Control & Connectivity | |
| Firmware | Klipper |
| Computing Platform | MINGDA PI |
| Display | 15.6-Inch Color Touchscreen |
| Connectivity | Wi-Fi, Ethernet, USB |
| XY Offset Calibration | Camera Calibration |
| Z Offset Calibration | Probe Calibration |
| Automatic Leveling | Fast Auto Leveling |
| AI Detection | Yes |
| Door Open Detection | Yes |
| Filament Detection | Pause Printing |
| Machine Detection | Power-On Self-Check |
| Auxiliary Feed | Yes |
| Remote Management | Remote Monitoring, Control & Printing |
| Power-Loss Recovery | Yes |
| Cooling & Filtration | |
| Model Cooling | Remote Air Supply |
| Extruder / Heat Break Cooling | Water Cooling |
| Air Filtration | HEPA Filter |
| Mechanical | |
| Build Plate Movement | Z-Axis / Vertical |
| Motors | Servo Motors |
| Thermal Insulation | Bellows Cover |
| Printing Platform | Thick Aluminum Plate + PEI |
| Printing Chamber | Fully Enclosed Chassis |
| Filament Holders | 2 × Maximum 3 kg Spools |
| Software | |
| Slicing Software | MINGDA Slicer |
| Operating Systems | Windows / macOS |
| Supported Formats | .3MF, .STL, .STP, .STEP, .AMF, .OBJ |
| Electrical & Safety | |
| Maximum Power | 12,000 W |
| Voltage | 3-Phase 380 V |
| Safety | Warning Light + Emergency Stop |
| Certification | CE |
| Dimensions | |
| Machine Dimensions | 2006 × 1980 × 1975 mm |
| Package Dimensions | 2110 × 2080 × 2150 mm |
Rapid Scan 3D can help evaluate the Raptor 1200 for your oversized additive manufacturing applications, material requirements and production goals.
Determine whether the Raptor 1200 is appropriate for your component size, geometry and production environment.
Evaluate ABS, ASA, PC, nylon, PPS and reinforced engineering materials.
Work with Rapid Scan 3D to integrate super large-format additive manufacturing into your workflow.
Contact Rapid Scan 3D for MINGDA Raptor 1200 pricing, application assistance, material recommendations and purchasing information.
