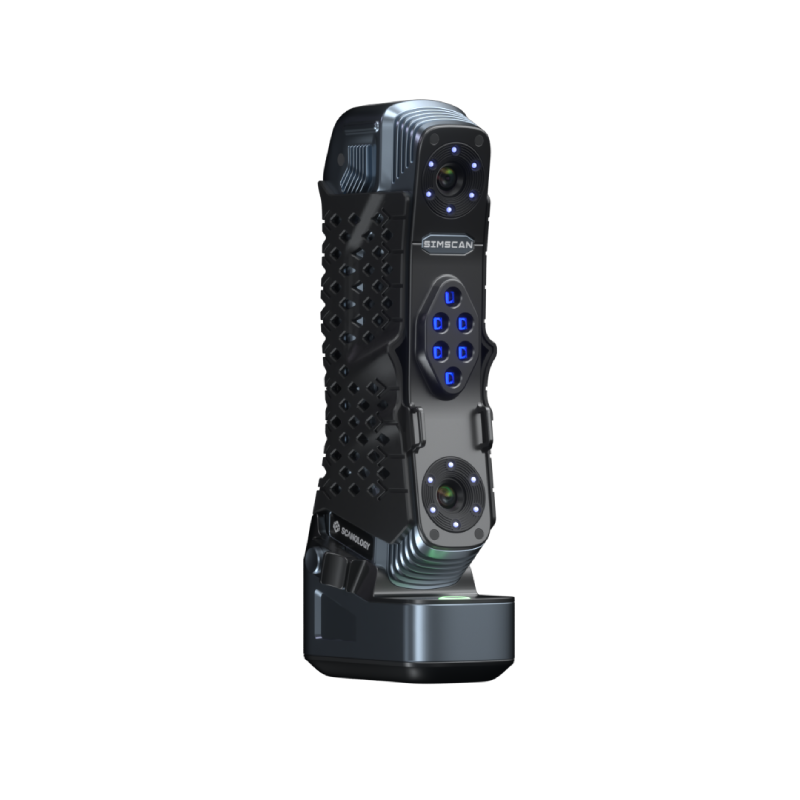

The SIMSCAN-S Gen2 is a palm-sized, wireless handheld 3D scanner designed for high-accuracy 3D measurement, inspection, and reverse engineering. Built for demanding industrial environments, it delivers exceptional detail, fast data capture, and reliable performance when scanning complex parts, precision-machined surfaces, deep features, slots, channels, and hard-to-reach areas.
With accuracy up to 0.015 mm, a maximum measurement rate of up to 8,100,000 measurements per second, and a lightweight 560 g magnesium-alloy body, the SIMSCAN-S Gen2 gives professional users the speed, portability, and precision needed for advanced manufacturing, aerospace, automotive, mold, energy, heavy industry, rail, shipbuilding, and quality control applications.
Need help choosing the right 3D scanner?
Contact Rapid Scan 3D to request pricing, schedule a demo, or speak with a 3D scanning expert.
Request a Quote Schedule a Demo
SIMSCAN-S Gen2 Highlights
The SIMSCAN-S Gen2 is engineered for users who need confidence in every scan. From high-tolerance inspection to reverse engineering complex geometry, this scanner is built to capture accurate 3D data quickly while giving operators the freedom to move around parts without being limited by traditional scanning setups.
Built for Critical Measurement and Surface Verification
The SIMSCAN-S Gen2 is designed for applications where small deviations matter. With high accuracy, advanced optics, and enhanced measurement algorithms, it provides dependable scan data for GD&T-critical surfaces, precision-machined components, assembly features, and inspection workflows where fit, function, and quality decisions depend on reliable 3D data.
| Accuracy | Up to 0.015 mm |
|---|---|
| Volumetric Accuracy | 0.015 mm + 0.03 mm/m |
| Adaptive Photogrammetry | 0.015 mm + 0.012 mm/m when paired with a high-precision scale bar |
| Flatness | 0.035 mm |
| Sphericity | 0.025 mm |
| Measurement Standard | ISO 10360-13, VDI/VDE 2634 Part 3, and JJF1951 evaluation references |
Key Features
SIMSCAN-S Gen2 combines compact size with professional measurement performance. Its 0.015 mm accuracy makes it a strong choice for manufacturers, engineers, and inspection teams that need highly detailed scan data from complex parts and critical surfaces.
With 108 quad-crossed blue laser lines in ultra-fast scanning mode, 126 total blue laser lines, a maximum scanning rate of up to 8,100,000 measurements per second, and a frame rate up to 180 FPS, SIMSCAN-S Gen2 helps users capture more data in less time.
SIMSCAN-S Gen2 is designed for wireless operation using Wi-Fi 6 data transfer and edge computing. This allows users to scan more freely around large parts, inside vehicles, on shop floors, around fixtures, and in areas where cables can slow down the workflow.
Weighing only 560 g, the SIMSCAN-S Gen2 is easy to handle during long scanning sessions. The compact design helps reduce operator fatigue while allowing users to scan from different angles and positions.
The short-baseline camera design allows the scanner to capture data in gaps, deep holes, slots, channels, pockets, and other difficult-to-access areas. This makes it ideal for complex castings, machined components, molds, tooling, assemblies, and aerospace or automotive parts.
SIMSCAN-S Gen2 includes ultra-fast scanning, hyperfine scanning, and deep-hole scanning modes, giving users the flexibility to switch between speed, detail, and hard-to-reach geometry depending on the part and application.
ScanTech’s DefinSight software supports a streamlined 3D scanning workflow from data capture through analysis. It helps users process scan data, review results, and move efficiently from scanning to decision-making.
| Mode | Laser Configuration | Best Use |
|---|---|---|
| Ultra-Fast Scanning | 108 blue laser lines with Quad Cross Technology | Fast capture of complex parts, large areas, and general inspection data |
| Hyperfine Scanning | 17 blue parallel laser lines | High-detail scanning of fine features, edges, and precision surfaces |
| Deep Hole Scanning | 1 extra blue laser line | Capturing holes, slots, grooves, channels, pockets, and recessed areas |
SIMSCAN-S Gen2 is ideal for industries that require accurate, repeatable, and fast 3D measurement. It is especially useful when parts have tight tolerances, complex geometry, or surfaces that must be verified with confidence.
Inspect precision components, machined features, assembly surfaces, brackets, housings, and complex parts where tolerance control and reliable measurement are critical.
Capture body panels, castings, engine components, custom parts, molds, fixtures, interiors, and performance components for inspection, reverse engineering, and product development.
Scan molds, dies, tooling, cavities, inserts, and complex surfaces for dimensional inspection, repair, reverse engineering, and design updates.
Digitize large equipment components, castings, machined parts, maintenance items, and industrial assemblies with a portable scanner that can be used in real-world environments.
Support inspection, maintenance, repair, reverse engineering, and documentation of large assemblies, structural parts, and complex mechanical components.
Create accurate scan data for CAD modeling, design validation, prototyping, additive manufacturing, and digital archiving.
| Product | SIMSCAN-S Gen2 |
|---|---|
| Scanner Type | Palm-sized handheld 3D laser scanner |
| Accuracy | Up to 0.015 mm |
| Volumetric Accuracy | 0.015 mm + 0.03 mm/m |
| Adaptive Photogrammetry | 0.015 mm + 0.012 mm/m when paired with high-precision scale bar |
| Resolution | Up to 0.020 mm |
| Sphericity | 0.025 mm |
| Flatness | 0.035 mm |
| Scanning Rate | Up to 8,100,000 measurements/s |
| Frame Rate | Up to 180 FPS |
| Total Laser Lines | 126 blue laser lines total |
| Ultra-Fast Scanning | 108 blue laser lines with Quad Cross Technology |
| Hyperfine Scanning | 17 blue parallel laser lines |
| Deep Hole Scanning | 1 extra blue laser line |
| Scanning Area | Up to 700 mm × 600 mm |
| Laser Class | Class II, eye-safe |
| Stand-Off Distance | 300 mm |
| Depth of Field | 550 mm |
| Dimensions | 203 mm × 80 mm × 44 mm |
| Weight | 560 g |
| Interface | USB 3.0 |
| Wireless Standard | Wi-Fi 6, 802.11a/b/g/n/ac |
| Output Formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, and more |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
The SIMSCAN-S Gen2 is the higher-accuracy model in the Gen2 lineup. It is designed for users who need the best available accuracy, feature verification, and critical surface measurement. The SIMSCAN-E Gen2 is also fast and capable, but the SIMSCAN-S Gen2 adds higher accuracy along with flatness and sphericity performance for more demanding inspection applications.
| Feature | SIMSCAN-S Gen2 | SIMSCAN-E Gen2 |
|---|---|---|
| Accuracy | 0.015 mm | Up to 0.020 mm |
| Scanning Rate | Up to 8,100,000 measurements/s | Up to 8,100,000 measurements/s |
| Scanning Area | Up to 700 mm × 600 mm | Up to 700 mm × 600 mm |
| Volumetric Accuracy | 0.015 mm + 0.03 mm/m | 0.015 mm + 0.035 mm/m |
| Adaptive Photogrammetry | 0.015 mm + 0.012 mm/m | 0.015 mm + 0.015 mm/m |
| Sphericity | 0.025 mm | Not listed |
| Flatness | 0.035 mm | Not listed |
Why Buy Your SIMSCAN-S Gen2 from Rapid Scan 3D?
Buying a 3D scanner is not just about the hardware. The right scanner depends on your part size, tolerance requirements, software workflow, inspection needs, CAD requirements, and operator experience. Rapid Scan 3D helps you choose the correct scanner and software setup so your team can get accurate results faster.
The SIMSCAN-S Gen2 is designed for higher-end accuracy and critical surface measurement. It offers up to 0.015 mm accuracy, along with listed flatness and sphericity performance for more advanced inspection and feature-level verification.
Is the SIMSCAN-S Gen2 wireless?Yes. The SIMSCAN-S Gen2 supports wireless operation with Wi-Fi 6 wireless data transfer and edge computing, giving users more freedom when scanning around large parts, vehicles, fixtures, or hard-to-access areas.
Yes. The short-baseline camera design helps the scanner capture data in gaps, deep holes, slots, channels, and other hard-to-reach geometry.
SIMSCAN-S Gen2 works with ScanTech’s DefinSight software for scanning and analysis. Depending on your workflow, scan data can also be used with reverse engineering and inspection software such as Geomagic Design X, Geomagic Control X, PolyWorks Inspector, QUICKSURFACE, and other compatible platforms.
Yes. The scanner can capture accurate 3D data from physical parts that can be used to create CAD models, redesign components, develop replacement parts, or support product development.
Yes. Its high accuracy, flatness, sphericity, and fast scanning performance make it a strong fit for quality inspection, CAD comparison, dimensional verification, and GD&T-focused workflows.
Does Rapid Scan 3D provide training?Yes. Rapid Scan 3D can provide product guidance, demonstrations, training, and implementation support to help your team get the most from your 3D scanning system.
Request Pricing or Schedule a Demo
Ready to learn more about the SIMSCAN-S Gen2 palm-sized 3D scanner? Contact Rapid Scan 3D today to discuss your application, compare scanner options, and get expert help choosing the right 3D scanning solution.
