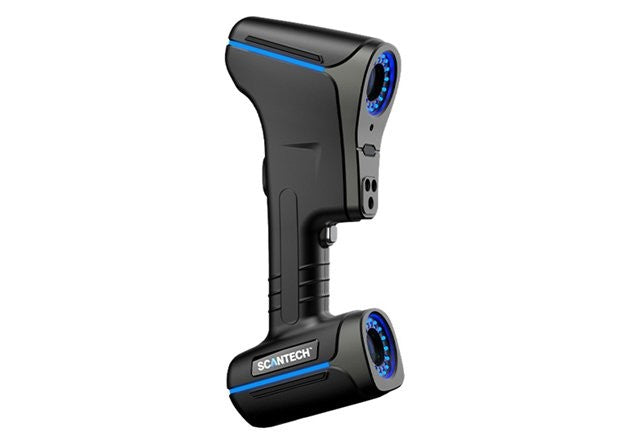

Scantech AXE B11

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.

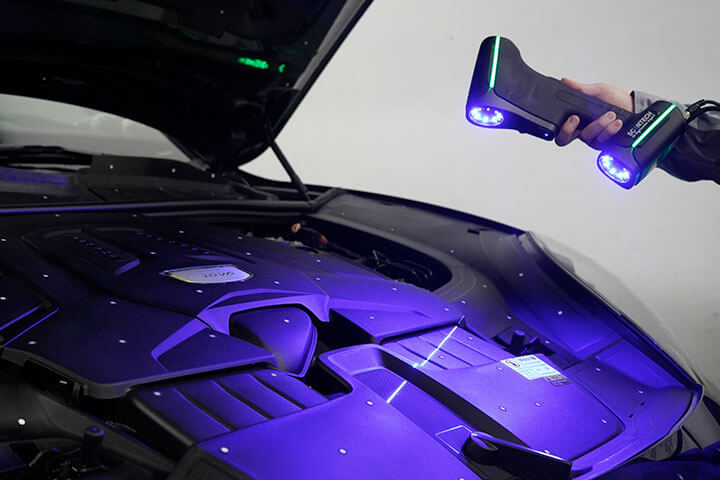

The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.

The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).

Ultra-wide scanning area of 860 mm x 600 mm


Up to 2,000,000 measurements/s


Accuracy Up to 0.020 mm

Extreme-fast Response

AXE-B 3D model scanner has the maximum of 17 crossed blue laser lines that enable extremely fast and precise response with up to 2,000,000 measurements/s, offering extraordinary work efficiency.

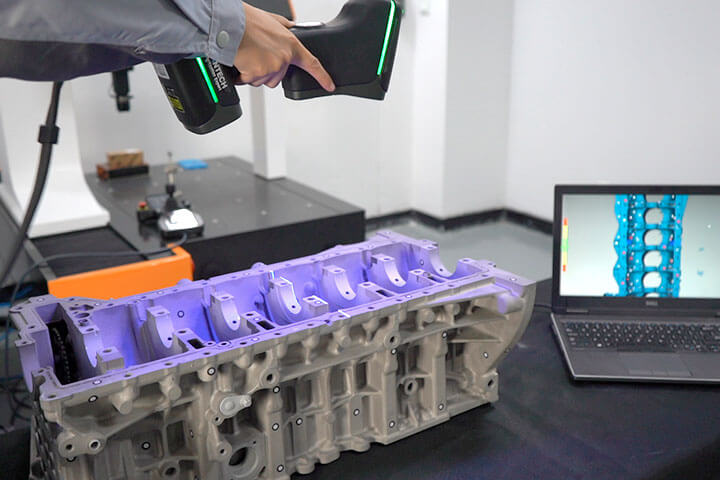

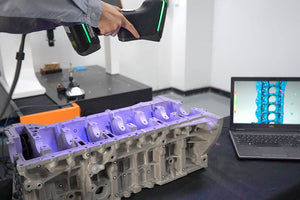

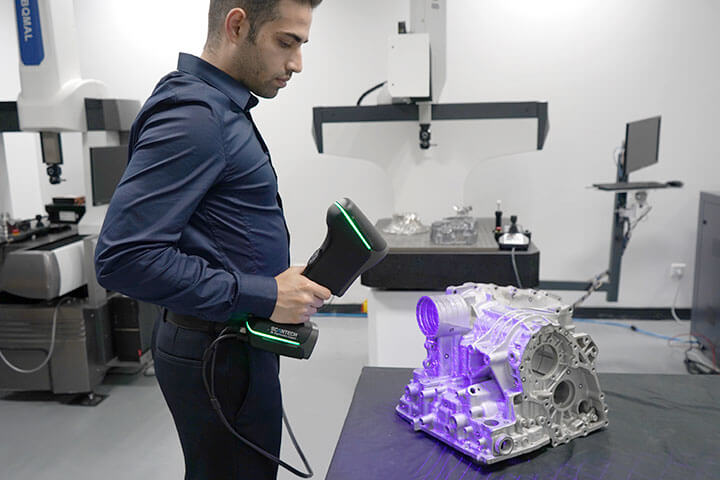

With global initiative built-in photogrammetry system, AXE-B outputs ultra-large scanning area and metrology-grade measurement accuracy. Getting rid of limitations like size, shape, material and complexity of the object, AXE-B can freely choose working modes of efficient high-speed scanning and accurate deep hole scanning. It achieves ultra-high precision 3D inspection of medium to large-sized projects without the aid of extra devices.

Flexible Switching

Working modes are capable of freely switching based on scanning needs: efficient unrivaled-speed scanning; accurate deep hole scanning, dealing with intricate positions like deep holes and dead angles.

flexible switching

Technical Specifications AXE
Type AXE-B17 AXE-B11
Scan mode Ultra-fast scanning 17 blue laser crosses 11 blue laser crosses
Scan mode Deep hole scanning 1 extra blue laser line 1 extra blue laser line
Accuracy(1) Up to 0.020 mm Up to 0.020 mm
Measurement rate Up to 2,000,000 measurements/s Up to 1,300,000 measurements/s
Scanning area Up to 860 mm × 600 mm Up to 550 mm × 600 mm
Scanning area (photogrammetry) Scanning area 3760 mm × 3150 mm 2500 mm × 3000 mm
Depth of field 2500 mm 2500 mm
Laser class CLASS II (eye-safe) CLASS II (eye-safe)
Resolution 0.025 mm 0.025 mm
Volume accuracy(2) Work alone 0.020 mm + 0.030 mm/m 0.020 mm + 0.035 mm/m
Work with 1m reference bar 0.020 mm + 0.020 mm/m 0.020 mm + 0.020 mm/m
Work with MSCAN-L15 0.020 mm + 0.012 mm/m 0.020 mm + 0.012 mm/m
Stand-off distance 300 mm 300 mm
Depth of field 500 mm 500 mm
Output formats .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10°C–40°C -10°C–40°C
Interface mode USB 3.0 USB 3.0
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated. (2)ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
