Scantech AutoScan T 3D System

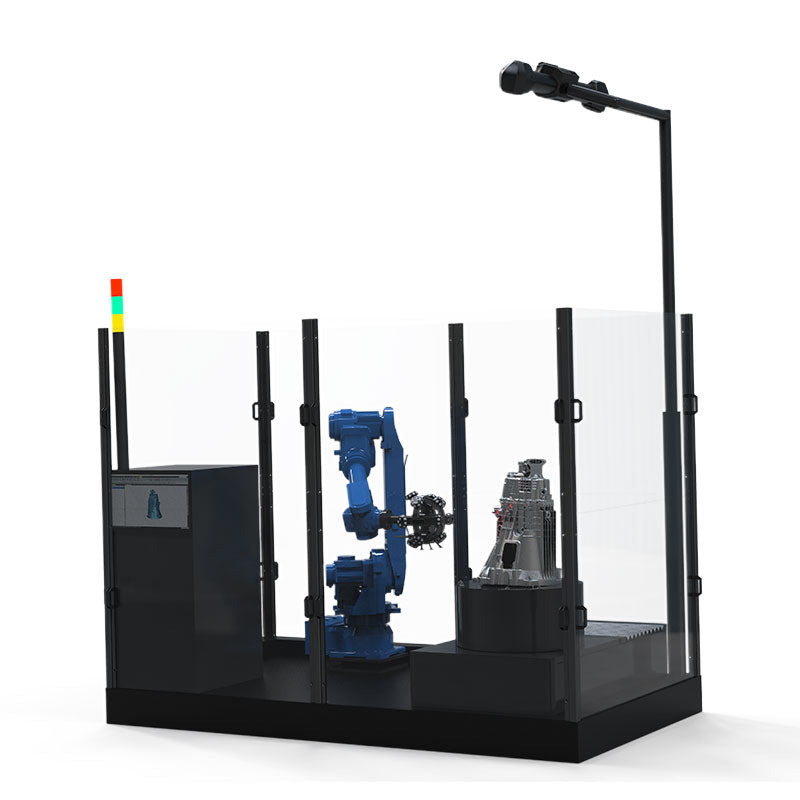

AutoScan-T42 3D System

AutoScan-T42 automated 3D system is a new upgrade for intelligent automated inspection. It is specially designed for automated quality control in shop-floor conditions, facilitating enterprises to achieve the optimum matching between cost and efficiency.

AutoScan-T42 conducts non-destructive scanning without attaching markers. Its seamless connection with the production line greatly contributes to the reduction of the workload. The military-grade manufacturing quality presents strong anti-interference and high adaptation to the complex and harsh workshop environments. It can be extensively used in national defense, energy, 5G, mold manufacturing, etc., users can easily operate the system owing to one-click start, offline programming, and compatibility with 3D software.

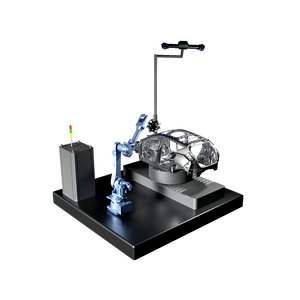

Work Seamlessly with Production Line

Based on automatic optical tracking and seamlessly integrated into the production line, it is designed for online automated inspection and enhances the iterative efficiency of the production process greatly.

Multiple Configurations

Conjunction with the handheld 3D scanner, portable CMM, MSCAN photogrammetry system, rotary platforms, and guide rails, realize simultaneous optical tracking and scanning and personalized solutions.

Speed up Precise Inspection

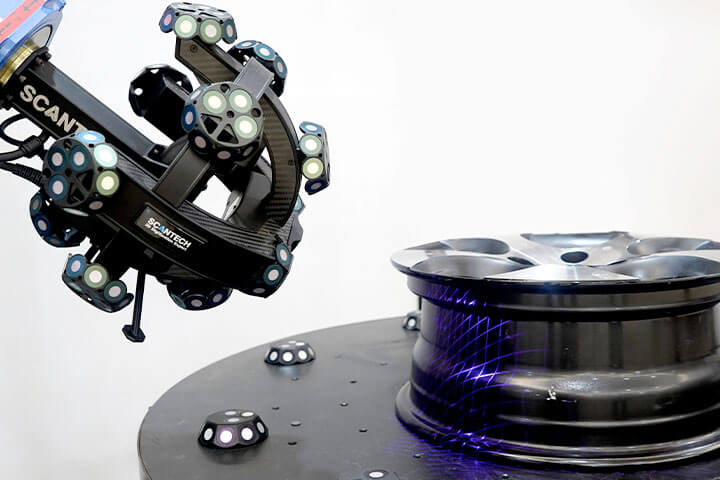

With the adoption of blue laser and synchronous tracking technologies, it reaches up to 1,900,000 measurements/s and an accuracy of 0.025 mm. Efficient and flexible automated manufacturing can be achieved without being affected by external factors.

Military-grade Quality

Being insusceptible to temperature, vibration, dust, etc., the military-grade design presents superior adaptability in harsh industrial environment.


Simple Operation

Due to One-click start, offline programming and generating automated inspection, it enables simple operation for users, regardless of their experience, to easily finish the measurement.

Technical specification AutoScan T 3D System
Type AutoScan-T550 AutoScan-T542
Scan mode Ultra-fast scanning 21 blue laser crosses 17 blue laser crosses
Scan mode Hyperfine scanning 7 blue parallel laser lines
Scan mode Deep hole scanning 1 blue laser line
Accuracy(1) Up to 0.025 mm Up to 0.025 mm
Measurement rate Up to 2,600,000 measurements/s Up to 2,200,000 measurements/s
Scanning area Up to 500 mm × 600 mm Up to 500 mm × 600 mm
Laser class Class II (eye-safe) Class II (eye-safe)
Resolution Up to 0.020 mm Up to 0.020 mm
Volumetric accuracy(2) 10.4 m³ 0.060 mm 0.060 mm
Volumetric accuracy(2) 18.0 m³ 0.075 mm 0.075 mm
Volumetric accuracy (With MSCAN photogrammetry system) 0.044 mm + 0.012 mm/m 0.044 mm + 0.012 mm/m
Single-point repeatability of portable CMM T-Probe 0.030 mm 0.030 mm
Hole position accuracy 0.050 mm 0.050 mm
Object Size (Recommend) 100 mm–8000 mm 100 mm–8000 mm
Stand-off distance 300 mm 300 mm
Depth of field 400 mm 400 mm
Output formats .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10°C–40°C -10°C–40°C
Operating humidity (Non-condensation) 10%–90% RH 10%–90% RH
Interface mode USB 3.0 USB 3.0
Certification CE, UL CE, UL
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated. (2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
