High-Accuracy Blue-Light Handheld 3D Scanner

Artec Space Spider for Reverse Engineering, Inspection & High-Resolution 3D Scanning

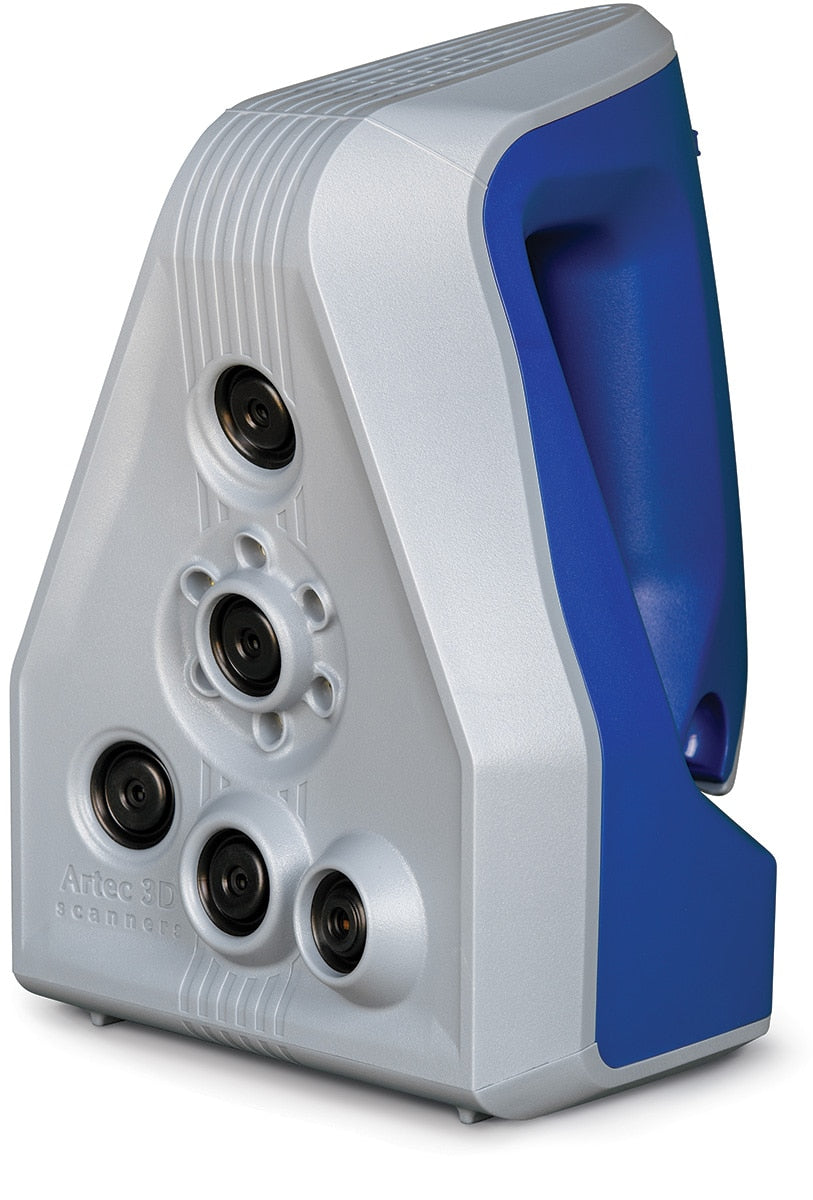

Name: Artec Space Spider
Brand: Artec 3D

Artec Space Spider is a high-accuracy blue-light handheld 3D scanner designed for small industrial parts and intricate sections of larger objects. With up to 0.05 mm accuracy, 0.1 mm resolution, target-free tracking, full-color capture, and long-term repeatability, Space Spider is built for CAD, reverse engineering, inspection, product design, manufacturing, forensics, and automotive applications.

Request Space Spider Pricing Schedule a Space Spider Demo

Artec Space Spider high-accuracy handheld 3D scanner in an industrial lab

0.05 mmMaximum 3D point accuracy

0.1 mmMaximum 3D resolution

7.5 FPSMaximum reconstruction rate

1M pts/secMaximum data acquisition speed

High-Resolution 3D Scanning for Small Industrial Parts

Space Spider is built to capture complex geometry, sharp edges, thin ribs, fine surface detail, and full-color texture without applying reflective targets.

0.05 mm Accuracy

Create precise 3D models for engineering, reverse engineering, quality control, and CAD workflows.

0.1 mm Resolution

Capture dense surface detail on molding parts, PCBs, keys, coins, mechanical components, and intricate geometry.

No Targets Required

Hybrid geometry and texture tracking allows fast setup and contact-free scanning without marker placement.

Long-Term Repeatability

Temperature stabilization helps maintain reliable accuracy as environmental conditions change.

Full-Color Capture

1.3 MP texture resolution and 24-bit color create realistic replicas for documentation, design, and visualization.

Portable Battery Operation

Use an optional battery pack for up to six hours of field scanning away from wall power.

See Artec Space Spider in Action

Official Artec imagery showing industrial scanning, fine-detail capture, long-term repeatability, and Artec Studio workflows.

Artec Space Spider scanning an industrial component

Industrial 3D Scanning

Capture precise parts on the bench, in the lab, or on the production floor.

Detailed mechanical component captured with Artec Space Spider

Fine Mechanical Detail

Resolve splines, edges, cast features, holes, and intricate small-part geometry.

Artec Space Spider handheld scanner used in a controlled industrial environment

Repeatable Accuracy

Temperature stabilization supports consistent data capture across extended scanning sessions.

Artec Studio Processing

Align, clean, fuse, inspect, and prepare Space Spider data for CAD and engineering workflows.

Product and application imagery is served directly from Artec 3D.

What Can You Scan With Space Spider?

Molding parts and small industrial components
Printed circuit boards and electronics
Keys, coins, fasteners, and detailed small objects
Engine parts, housings, gears, and mechanical assemblies
Automotive components and custom aftermarket parts
Human ears and body features for healthcare or research
Forensic evidence and sensitive contact-free objects
Legacy parts for reverse engineering and CAD reconstruction

Typical Scan-to-CAD Workflow

1. Scan: Point Space Spider at the object and capture geometry and color without targets.

2. Process: Align scans, remove unwanted data, and fuse geometry in Artec Studio.

3. Measure or reverse engineer: Use scan-to-CAD tools, dimensions, primitives, sections, or external CAD software.

4. Export: Deliver mesh, CAD, or measurement data for engineering, inspection, or manufacturing.

Artec Space Spider Technical Specifications

Key specifications from Artec's archived Space Spider product documentation.

Scanner type	Handheld blue structured-light 3D scanner
3D point accuracy	Up to 0.05 mm
3D resolution	Up to 0.1 mm
3D accuracy over distance	Up to 0.05 mm + 0.3 mm/m
Object size	Starting from approximately 5 mm
Target-free tracking	Hybrid geometry and color based
Working distance	0.2 to 0.3 m
Field of view, closest range	90 × 70 mm
Field of view, furthest range	180 × 140 mm
3D reconstruction rate	Up to 7.5 FPS
Data acquisition speed	Up to 1 million points per second
Texture resolution	1.3 MP
Color	24 bpp
3D light source	Blue LED
2D light source	White 6 LED array
Interface	USB 2.0; USB 3.0 compatible
Power	AC power or optional external battery pack
Dimensions	190 × 140 × 130 mm
Weight	Approximately 0.8–0.85 kg
Supported OS	Windows 7, 8, 10, 11 x64
Mesh export formats	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD formats	STEP, IGES, X_T
Measurement formats	CSV, DXF, XML

Reverse Engineering, Inspection & Product Development

Space Spider is especially effective when high accuracy and fine detail are needed on smaller industrial objects.

Reverse Engineering

Capture legacy and custom parts for CAD reconstruction, replacement, redesign, and rapid prototyping.

Quality Inspection

Digitize manufactured parts for dimensional comparison, tolerance checks, and detailed inspection workflows.

Product Design

Capture existing geometry to accelerate concept development, fit studies, customization, and design iteration.

Automotive

Scan precise mechanical components, racing parts, housings, brackets, and custom assemblies.

Forensics

Preserve detailed evidence and surface geometry without physically contacting sensitive objects.

Manufacturing

Support mold making, machining, prototyping, production verification, and process improvement.

Built for Stable Accuracy

Space Spider was originally developed to specification for use on the International Space Station, leading to an active temperature-stabilization design focused on repeatability and environmental stability.

Fast Warm-Up

Temperature stabilization allows the scanner to reach maximum accuracy in approximately three minutes.

Environmental Stability

Internal thermoregulation helps reduce accuracy changes caused by temperature fluctuations.

Long-Haul Scanning

Use external battery power for portable scanning in workshops, field environments, or locations without nearby AC power.

Why Buy Artec Space Spider From Rapid Scan 3D?

Rapid Scan 3D is an authorized Artec 3D reseller, Gold Certified Partner, and Artec Ambassador with more than 15 years of professional 3D scanning experience.

Application Consultation

We help evaluate object size, accuracy, geometry, color needs, CAD workflow, and final deliverables.

Demonstrations & Sample Scans

Evaluate Space Spider on intricate components, automotive parts, forensic objects, prototypes, and manufactured parts.

Training & Technical Support

Get help with scanning technique, Artec Studio, reverse engineering, inspection, scan-to-CAD, and implementation.

Artec Space Spider Frequently Asked Questions

Common questions about accuracy, targets, calibration, object size, scanning speed, CAD, portability, and pricing.

What is the Artec Space Spider?

Artec Space Spider is a high-resolution blue-light handheld 3D scanner designed for small industrial objects and intricate details of larger objects.

How accurate is Artec Space Spider?

Space Spider provides 3D point accuracy of up to 0.05 mm and 3D resolution of up to 0.1 mm.

Does Space Spider require targets?

No. Space Spider uses hybrid geometry and texture tracking and does not require reflective targets for normal scanning.

Does Space Spider need calibration?

It does not require calibration before every scan. Artec recommends recalibration periodically or when specific conditions indicate it is needed.

How fast is Artec Space Spider?

Space Spider scans at up to 7.5 frames per second and processes up to approximately one million points per second.

What size objects can Space Spider scan?

It is optimized for small industrial objects and detailed sections of larger objects, with supported object sizes starting from approximately 5 mm.

Can Space Spider be used for CAD and reverse engineering?

Yes. Its 0.05 mm accuracy and 0.1 mm resolution make it well suited to reverse engineering, CAD reconstruction, rapid prototyping, and inspection.

Can Space Spider run on battery power?

Yes. It can be connected to an optional Artec battery pack for portable scanning away from AC power.

What software is used with Space Spider?

Space Spider works with Artec Studio for scan capture, alignment, processing, texturing, measurement, inspection, scan-to-CAD, and export.

How do I get Artec Space Spider pricing?

Contact Rapid Scan 3D for current Space Spider availability, pricing, used or demo options, Artec Studio licensing, training, accessories, and application recommendations.

Request Space Spider Pricing, Availability, or an Application Review

Tell Rapid Scan 3D what you need to scan, the object size, required accuracy, level of detail, CAD workflow, inspection needs, and final deliverable.

Contact Rapid Scan 3D Ask About Space Spider

Technical	Eva	Eva Lite	Space Spider	Leo	Micro	Ray II	Metrology Kit Professional	Metrology Kit Entry
Scanner type	Handheld	Handheld	Handheld	Handheld	Desktop	Tripod	Mobile	Mobile
3D point accuracy , up to	0.1 mm	0.1 mm	0.05 mm	0.1 mm	0.01 mm	1.9 mm @10 m Angular 18" (0.87 mm @ 10 m)	0.002 mm + 0.005 mm/m (RMS) 0.003 mm + 0.007 mm/m (3 sigma)	0.004 mm + 0.006 mm/m (RMS) 0.005 m + 0.009 mm/m (3 sigma)
3D resolution , up to	0.2 mm	0.5 mm	0.1 mm	0.2 mm	0.029 mm	3 / 6 / 12 mm @ 10 m	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D accuracy over distance, up to	0.1 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	0.05 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m	—	Range noise: 0.4 mm @ 10 m 0.5 mm @20 m	0.003 mm + 0.007 mm/m (3 sigma)	0.005 mm + 0.009 mm/m (3 sigma)
HD Mode	Yes	No	N/A	Yes	N/A	HDR: Automatic, 5 brackets	N/A	N/A
Hybrid geometry and texture tracking	Yes	No	Yes	Yes	N/A	N/A	Targets	Targets
Data processing algorithms	Geometry and texture based	Geometry based	Geometry and texture based	Geometry and texture based	Geometry based	Real time registration, Automatic removal of moving objects, Check & Adjust	__	__
Working distance	0.4 – 1 m	0.4 – 1 m	0.2 – 0.3 m	0.35 – 1.2 m	—	0.5 to 130 m	__	__
Volume capture zone	61,000 cm³	61,000 cm³	2,000 cm³	160,000 cm³	324 cm³	360 degrees	65 × 46°	__
Linear field of view, H×W @ closest range	214 × 148 mm	214 × 148 mm	90 × 70 mm	244 × 142 mm	—	__	__	__
Linear field of view, H×W @ furthest range	536 × 371 mm	536 × 371 mm	180 × 140 mm	838 × 488 mm	—	__	__	__
Angular field of view, H×W	30 × 21°	30 × 21°	30 × 21°	38.5 × 23°	—	__	__	__
Ability to capture texture	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes
Texture resolution	1.3 mp	—	1.3 mp	2.3 mp	6.4 mp	36 mp	30.3 mp	20.2 mp
Colors	24 bpp	—	24 bpp	24 bpp	24 bpp	432 MPx raw data	30.3 megapixels (6720 × 4480)	20.2 megapixels (5472 × 3648)
3D reconstruction rate for real-time fusion, up to	16 fps	16 fps	7.5 fps	22 fps	—	__	__	__
3D reconstruction rate for 3D video recording, up to	16 fps	16 fps	7.5 fps	44 fps	—	__	__	__
3D reconstruction rate for 3D video streaming, up to	—	—	—	80 fps	—	__	Up to 8 images per second	Up to 4 images per second
Data acquisition speed, up to	18 mln points/s	2 mln points/s	1 mln points/s	35 mln points/s	1 mln points/s	Up to 2,000,000 pts/sec
3D exposure time	0.0002 s	0.0002 s	0.0002 s	0.0002 s	Customizable	__	__	__
2D exposure time	0.00035 s	0.00035 s	0.0002 s	0.0002 s	Customizable	__	__	__
3D light source	Flashbulb	Flashbulb	Blue LED	VCSEL	Blue LED	36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image	Canon EOS R	Canon EOS 6D
2D light source	White 12 LED array	White 12 LED array	White 6 LED array	White 12 LED array	RGB LED	LiDAR	White-light flash	White-light flash
Position sensors	—	—	—	Built-in 9 DoF inertial system	—	Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.
Display/touchscreen	USB streaming through external computer	USB streaming through external computer	USB streaming through external computer	Integrated 5.5" half HD, CTP. Optional Wi-Fi/Ethernet video streaming to external device	USB streaming through external computer	Onboard screen	__	__
Multi-core processing	On external computer	On external computer	On external computer	Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores	On external computer	On external computer	__	__
Interface	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	1 × USB 2.0, USB 3.0 compatible	Wi-Fi, Ethernet	USB 3.0	Wireless: Integrated wireless LAN (802.11 b/g/n)	__	__
Internal hard drive	—	—	—	512 GB SSD	—	AS256, 256 GB/USB 3.0 flash drive	__	__
Computer requirements	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.	Visit the Artec Support Center for detailed hardware requirements.
Supported OS	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Scanning: No computer required Data processing: Windows 8.1, 10 (x64), Windows 11	Windows 10 (x64)	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11	Windows 8.1, 10 (x64), Windows 11
Recommended computer requirements	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+
Minimum computer requirements	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM SD: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM A computer is needed only for data processing. Scanning does not require a computer.	Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Output formats
3D mesh	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T	STEP, IGES, X_T
Measurements	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML	CSV, DXF, XML
Power source and dimensions
Power source	AC power or external battery pack	AC power or external battery pack	AC power or external battery pack	Built-in exchangeable battery, optional AC power	AC power	Internal Battery 2 × AEB364 internal, rechargeable Li-Ion batteries, up to 4 hours	Li-ion battery	Li-ion battery
Dimensions, H×D×W	262 × 158 × 63 mm	262 × 158 × 63 mm	190 × 140 × 130 mm	231 × 162 × 230 mm	290 × 290 × 340 mm		520 × 430 × 250 mm	870 × 230 × 170 mm
Weight	0.9 kg / 2 lb	0.9 kg / 2 lb	0.8 kg / 1.8 lb	2.6 kg / 5.7 lb	12 kg / 2		5.35 kg / 11.7 lbs,	12 kg / 26.5 lb

Technical

Eva

Eva Lite

Space Spider

Leo

Micro

Ray II

Metrology Kit Professional

Metrology Kit Entry

Scanner type

Handheld

Desktop

Tripod

Mobile

3D point accuracy , up to

0.1 mm

0.05 mm

0.1 mm

0.01 mm

1.9 mm @10 m
Angular 18" (0.87 mm @ 10 m)

0.002 mm + 0.005 mm/m (RMS)
0.003 mm + 0.007 mm/m (3 sigma)

0.004 mm + 0.006 mm/m (RMS)
0.005 m + 0.009 mm/m (3 sigma)

3D resolution , up to

0.2 mm

0.5 mm

0.1 mm

0.2 mm

0.029 mm

3 / 6 / 12 mm @ 10 m

30.3 megapixels (6720 × 4480)

20.2 megapixels (5472 × 3648)

3D accuracy over distance, up to

0.1 mm + 0.3 mm/m

0.05 mm + 0.3 mm/m

0.1 mm + 0.3 mm/m

—

Range noise:
0.4 mm @ 10 m
0.5 mm @20 m

0.003 mm + 0.007 mm/m (3 sigma)

0.005 mm + 0.009 mm/m (3 sigma)

HD Mode

Yes

N/A

Yes

N/A

HDR: Automatic, 5 brackets

N/A

Hybrid geometry and texture tracking

Yes

N/A

Targets

Data processing algorithms

Geometry and texture based

Geometry based

Geometry and texture based

Geometry based

Real time registration, Automatic removal of moving objects, Check & Adjust

Working distance

0.4 – 1 m

0.2 – 0.3 m

0.35 – 1.2 m

—

0.5 to 130 m

Volume capture zone

61,000 cm³

2,000 cm³

160,000 cm³

324 cm³

360 degrees

65 × 46°

Linear field of view, H×W @ closest range

214 × 148 mm

90 × 70 mm

244 × 142 mm

—

Linear field of view, H×W @ furthest range

536 × 371 mm

180 × 140 mm

838 × 488 mm

—

Angular field of view, H×W

30 × 21°

38.5 × 23°

—

Ability to capture texture

Yes

Texture resolution

1.3 mp

—

1.3 mp

2.3 mp

6.4 mp

36 mp

30.3 mp

20.2 mp

Colors

24 bpp

—

24 bpp

432 MPx raw data

30.3 megapixels (6720 × 4480)

20.2 megapixels (5472 × 3648)

3D reconstruction rate for real-time fusion, up to

16 fps

7.5 fps

22 fps

—

3D reconstruction rate for 3D video recording, up to

16 fps

7.5 fps

44 fps

—

3D reconstruction rate for 3D video streaming, up to

—

80 fps

—

Up to 8 images per second

Up to 4 images per second

Data acquisition speed,
up to

18 mln points/s

2 mln points/s

1 mln points/s

35 mln points/s

1 mln points/s

Up to 2,000,000 pts/sec

3D exposure time

0.0002 s

Customizable

2D exposure time

0.00035 s

0.0002 s

Customizable

3D light source

Flashbulb

Blue LED

VCSEL

Blue LED

36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image

Canon EOS R

Canon EOS 6D

2D light source

White 12 LED array

White 6 LED array

White 12 LED array

RGB LED

LiDAR

White-light flash

Position sensors

—

Built-in 9 DoF inertial system

—

Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.

Display/touchscreen

USB streaming through external computer

Integrated 5.5" half HD, CTP. Optional Wi-Fi/Ethernet
video streaming to external device

USB streaming through
external computer

Onboard screen

Multi-core processing

On external computer

Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM®
Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS
GPU with 256 NVIDIA® CUDA® Cores

On external computer

Interface

1 × USB 2.0, USB 3.0 compatible

Wi-Fi, Ethernet

USB 3.0

Wireless: Integrated wireless LAN (802.11 b/g/n)

Internal hard drive

—

512 GB SSD

—

AS256, 256 GB/USB 3.0 flash drive

Computer requirements

Visit the Artec Support Center for
detailed hardware requirements.

Supported OS

Windows 8.1, 10 (x64), Windows 11

Scanning: No computer required
Data processing: Windows 8.1, 10 (x64), Windows 11

Windows 10 (x64)

Windows 8.1, 10 (x64), Windows 11

Recommended computer requirements

Intel Core i7 or i9, 64+ GB RAM,
NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+

Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM

Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+

Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+

Minimum computer requirements

HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM

Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM

Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM

HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM
SD: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM
A computer is needed only for data processing. Scanning does not require a computer.

Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM

HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM

Output formats

3D mesh

OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB

CAD

STEP, IGES, X_T

Measurements

CSV, DXF, XML

Power source and dimensions

Power source

AC power
or external battery pack

Built-in exchangeable battery, optional AC power

AC power

Internal Battery
2 × AEB364 internal, rechargeable Li-Ion batteries, up to 4 hours

Li-ion battery

Dimensions, H×D×W

262 × 158 × 63 mm

190 × 140 × 130 mm

231 × 162 × 230 mm

290 × 290 × 340 mm

520 × 430 × 250 mm

870 × 230 × 170 mm

Weight

0.9 kg / 2 lb

0.8 kg / 1.8 lb

2.6 kg / 5.7 lb

12 kg / 2

5.35 kg / 11.7 lbs,

12 kg / 26.5 lb

3D SCANNERS

Software

Scanning Services

Training

3D Printers

Accessories

Artec Space Spider

Artec Space Spider for Reverse Engineering, Inspection & High-Resolution 3D Scanning

High-Resolution 3D Scanning for Small Industrial Parts

0.05 mm Accuracy

0.1 mm Resolution

No Targets Required

Long-Term Repeatability

Full-Color Capture

Portable Battery Operation

See Artec Space Spider in Action

Industrial 3D Scanning

Fine Mechanical Detail

Repeatable Accuracy

Artec Studio Processing

What Can You Scan With Space Spider?

Typical Scan-to-CAD Workflow

Artec Space Spider Technical Specifications

Reverse Engineering, Inspection & Product Development

Reverse Engineering

Quality Inspection

Product Design

Automotive

Forensics

Manufacturing

Built for Stable Accuracy

Fast Warm-Up

Environmental Stability

Long-Haul Scanning

Why Buy Artec Space Spider From Rapid Scan 3D?

Application Consultation

Demonstrations & Sample Scans

Training & Technical Support

Artec Space Spider Frequently Asked Questions

Request Space Spider Pricing, Availability, or an Application Review

YOU MAY ALSO NEED

Search
