Metrology-Grade Accuracy
Measure signalized points with point-based accuracy down to 0.002 mm + 0.005 mm/m using the Professional version.
The Artec Metrology Kit is a portable optical coordinate measuring system designed for industrial photogrammetry, dimensional inspection, deformation analysis, large-part measurement, and high-accuracy 3D scanner referencing.
Designed for high-precision industrial measurement, the Artec Metrology Kit can operate as a standalone optical coordinate measuring system or as a photogrammetry reference solution for extending 3D scanner accuracy across larger measurement volumes.
Measure signalized points with point-based accuracy down to 0.002 mm + 0.005 mm/m using the Professional version.
Maintain high volumetric accuracy across large components, assemblies, tooling, vehicles, aircraft structures, and industrial equipment.
Measure parts in production environments where the object, fixture, or platform may move during data acquisition.

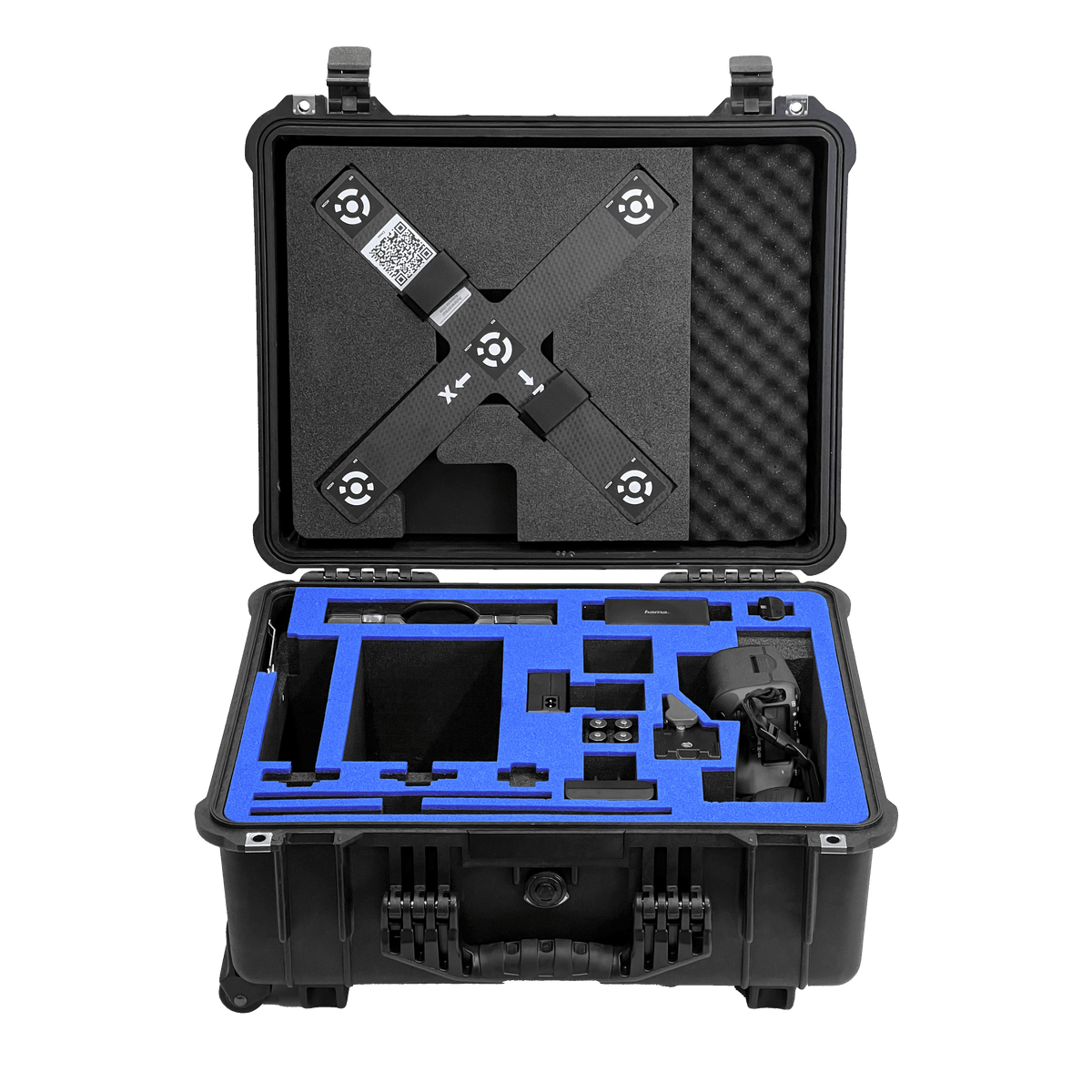

Transport the complete optical measurement system in a rugged case for use in workshops, production lines, test facilities, and field locations.
Combine photogrammetry reference data with Artec handheld 3D scanners to reduce accumulated error over distance and improve volumetric accuracy.
Integrate measurement results into professional inspection workflows using software such as Geomagic Control X and PolyWorks.
The Artec Metrology Kit is built for industrial users who need precise coordinate measurement across larger objects or measurement volumes where traditional fixed coordinate measuring machines may be impractical.
1. Prepare: Apply coded targets and place calibrated scale bars or reference accessories around the object.
2. Capture: Photograph the target network from multiple angles using the calibrated measurement camera.
3. Calculate: Process the images to calculate high-accuracy 3D coordinates and generate a reference point cloud.
4. Inspect or reference: Use the coordinate data for inspection or combine it with dense 3D scan data.
The system supports precision measurement across large and complex industrial parts, including applications where portability, repeatability, and accuracy over distance are critical.
Measure large components such as wind turbines, marine structures, tooling, and aerospace assemblies.
Use photogrammetry reference data to improve 3D scanning accuracy over distance.

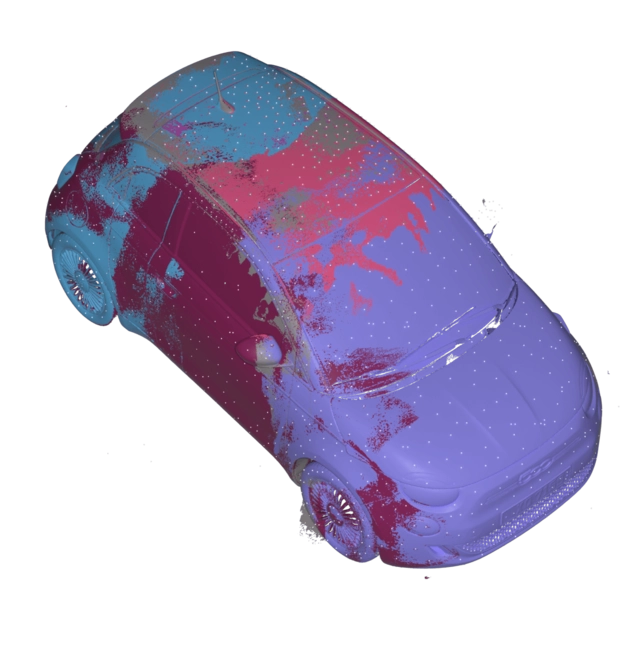

Inspect body geometry, welding positions, sensor locations, and vehicle assemblies.
Product and application imagery courtesy of Artec 3D.
Choose the Entry version for general engineering measurement or the Professional version for higher accuracy, larger projects, and more demanding industrial environments.
| Specification | Professional | Entry |
|---|---|---|
| Point-based accuracy, RMS | 0.002 mm + 0.005 mm/m | 0.004 mm + 0.006 mm/m |
| Length measurement accuracy | 0.015 mm + 0.015 mm/m | 0.025 mm + 0.025 mm/m |
| Camera | Canon EOS R | Canon EOS 6D |
| Camera resolution | 30.3 MP | 20.2 MP |
| Lens | 28 mm AICON metric wide-angle | 28 mm AICON metric wide-angle |
| Image capture speed | Up to 8 images per second | Up to 4 images per second |
| Wireless transfer | Optional | Not supported |
| Sensor weight | Approximately 1.7 kg / 3.7 lb | Approximately 1.4 kg / 3 lb |
| Transport system | Robust trolley case | Robust case |
| Artec Studio integration | Metrology Kit plugin included | Metrology Kit plugin included |
Photogrammetry provides a highly accurate reference network across a large object. Dense scan data from an Artec scanner can then be aligned to that network to preserve fine detail while reducing accumulated alignment error.
Combine the resolution of a handheld 3D scanner with photogrammetry accuracy across larger measurement volumes.
Import images, calculate reference coordinates, combine multiple point clouds, and align scan data in one workflow.
Maintain better volumetric accuracy when scanning vehicles, machinery, assemblies, and other large industrial objects.
Rapid Scan 3D is an authorized Artec 3D reseller, Gold Certified Partner, and Artec Ambassador with more than 15 years of professional 3D scanning experience.
We evaluate part size, accuracy, measurement volume, environment, software, and final inspection requirements.
See how the Metrology Kit fits into standalone photogrammetry, inspection, or 3D scanner referencing workflows.
Get assistance with targets, scale bars, image acquisition, Artec Studio integration, processing, and inspection workflows.
Answers to common questions about industrial photogrammetry, optical coordinate measurement, accuracy, applications, software, and 3D scanner referencing.
Tell Rapid Scan 3D about your part size, measurement volume, required accuracy, environment, inspection software, and whether the system will be used alone or with a 3D scanner.
Specifications and package contents may change. Confirm current configuration, certification, software requirements, and regional pricing before purchase.
