Spec Parameter
Payload 6kg
Radius 914mm
Accuracy ±0.03mm
Axis 6
IP rating IP65 (optional IP68)
Temperature range -10~50℃
Relative humidity <90% (non-condensing)
Typical power usage 250w
Tool I/O connector M8, 8pin
Tool I/O ports 4 config. DI, 4 config. DO; 1 AI, 1 AO
Tool I/O power supply 0 / 12V / 24V, 3A, 2A, 1A
Tool I/O communication RS485, Modbus RTU
Footprint Ø 150 mm
Weight 20 kg

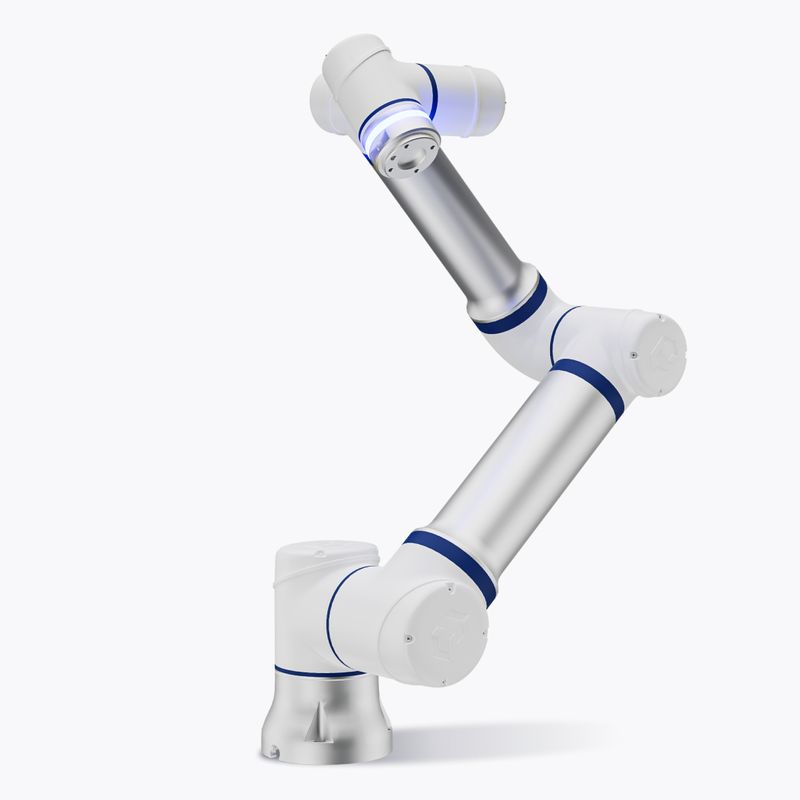

The CS66 robotic arm is the perfect choice for automating light-mid weight tasks. Easy to integrate and program, its 924mm reach and 6kg payload place it among the leaders in the segment and make it perfect for a variety of applications, from screwdriving to end-of-line pick-and-pack.
