Industry leading Reverse Engineering software. Create accurate CAD models from 3D scan data, faster, and more reliably than anything else on the market.
The Ultimate Scan-to-CAD Solution. Build accurate, digital parametric CAD from just about anything
Integrate with most scanners on the market, and capture data directly inside of Design X.
3-10x faster path to CAD than traditional tools.
Scan processing and familiar CAD workflows in one place.
Ian S., Product Manager (Heavy Machinery Industry)
Utilize existing parts to improve designs and accelerate sustainability.
LiveCapture huge datasets directly inside Design X to limit costly downtime
Industry leading functionality to optimize parts for manufacture.
Automated and guided tools to minimize repetitive tasks
LiveTransfer design history to reduce your time-to-market.

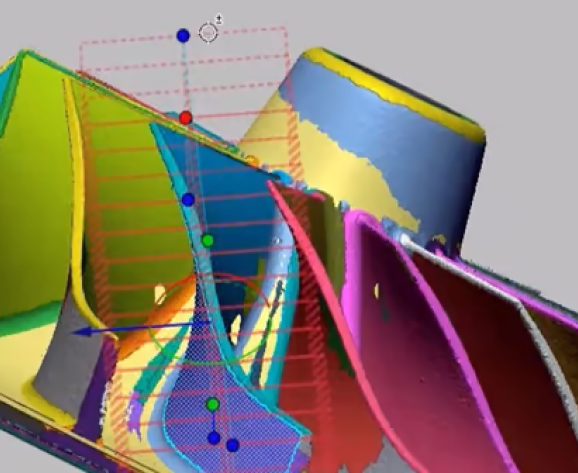

Recreate blades and blisks with dedicated blade geometry tools.
Collect assembly data to build replacement components.
Capture patient data to model directly from anatomy.
Capture intricate architectural details for restoration.

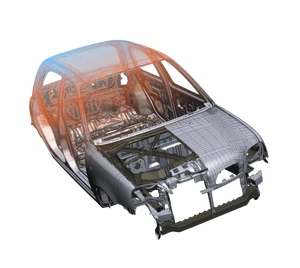

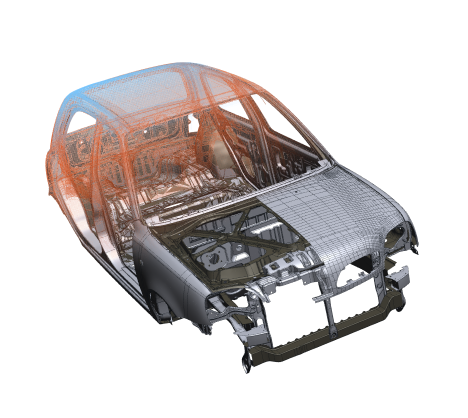

Collect information for root cause analysis in various scenarios, e.g. car crashes, footprints.
Scan entire rooms or buildings for accurate visualization and documentation.
Powerful Functionality to take your Scan-to-CAD faster
Capture data directly inside Geomagic Design X, or work with scan data from any scanner
Straightforward, expert handling and refinement of huge mesh and point cloud data sets.

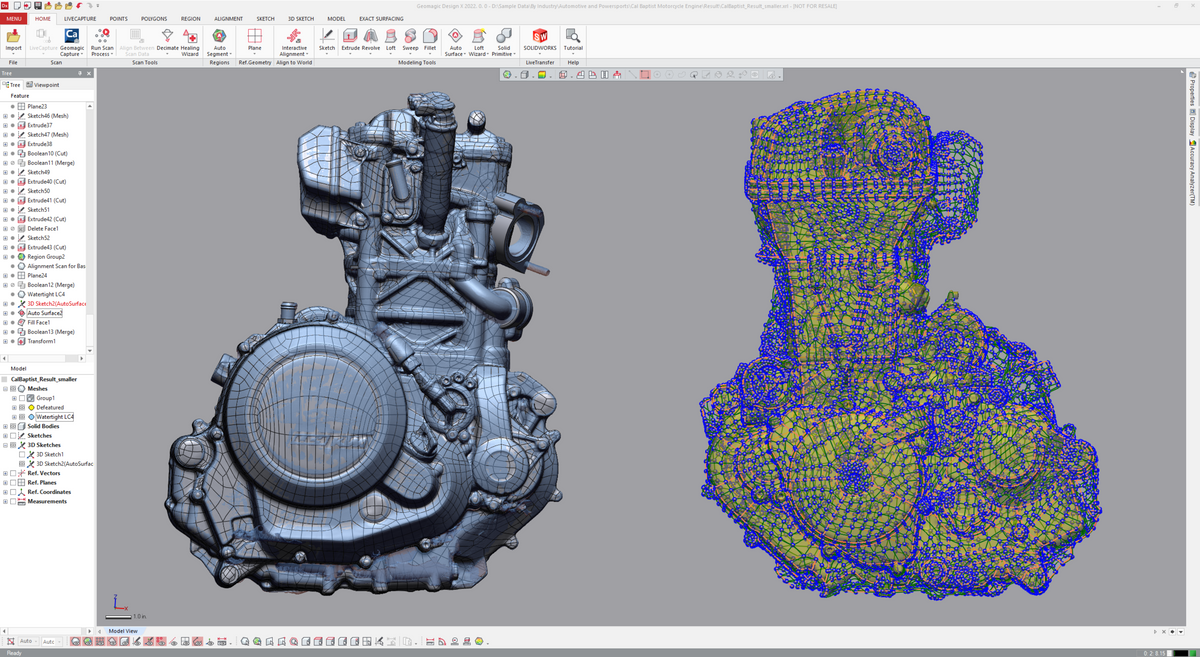

Automated and guided tools to extract geometric features directly from mesh.

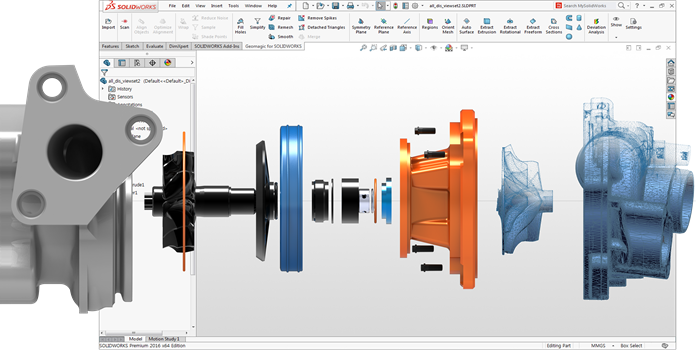

Transfer your data seamlessly with multiple 3D file export options and LiveTransfer of parametric 3D models to your favorite CAD package.

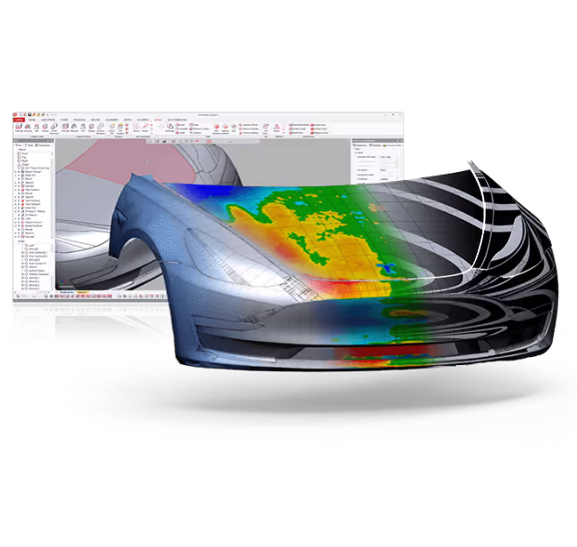

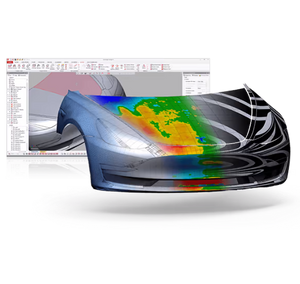

Use Accuracy Analyzer - our real-time, patented analysis tool - to directly compare your 3D model to the scan data.
